Substitution Systems

SubstitutionSystem generates a list representing the evolution of a given initial state following the iterative applications of a set of rules.

Consider the following initial state and set of rules.

In[1]:=
Click for copyable input
init = "\[Wolf]"; rules = {"\[HappySmiley]" -> "\[Wolf]\[HappySmiley]", "\[Wolf]" -> "\[HappySmiley]"};

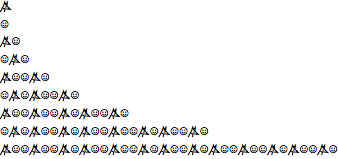

Use SubstitutionSystem to get its evolution over 8 iterations.

In[2]:=
Click for copyable input
SubstitutionSystem[{"\[HappySmiley]" -> "\[Wolf]\[HappySmiley]", "\[Wolf]" -> "\[HappySmiley]"}, "\[Wolf]", 8] // Column
Out[2]=

Use a two-dimensional set of rules to construct the Sierpiński carpet.

In[3]:=
Click for copyable input
rules2D = {1 -> {{1, 1, 1}, {1, 0, 1}, {1, 1, 1}}, 0 -> ConstantArray[0, {3, 3}]};

Visualize this substitution system using RulePlot.

In[4]:=
Click for copyable input
RulePlot@SubstitutionSystem[rules2D]
Out[4]=

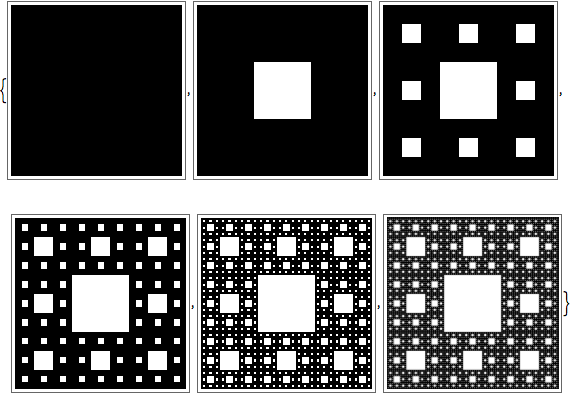

Generate the Sierpiński carpet.

In[5]:=
Click for copyable input
ArrayPlot /@ SubstitutionSystem[rules2D, {{1}}, 5]
Out[5]=
