Segmentation of a Knee Bone in 3D

To quantify and measure the properties of a component in a volume, segmentation is a necessary first step. To segment the bone tissue in an MRT volume, a clustering algorithm is used to achieve a rough segmentation and apply a grow-cut algorithm to obtain the final result.

In[1]:=
Click for copyable input
X
Out[1]=

The volume is preprocessed using MedianFilter to regularize noise. An initial segmentation is performed by clustering voxel intensities using ClusteringComponents. This partitions the data into three regions: empty space, muscle tissue, and the rest, which includes bone, fat, and skin.

In[2]:=
Click for copyable input
X
Out[2]=

Extract the segment with highest mean intensity, which depicts bone, fat, and skin tissue.

In[3]:=
Click for copyable input
X
Out[3]=
In[4]:=
Click for copyable input
X
Out[4]=

GrowCutComponents can provide a nice final segmentation. In order to create two markers for bone and no-bone areas, one can use morphological operations.

The bone marker can be computed by eroding the segment using a radius 4, which deletes all thin skin and fat layers and also erodes some of the bone.

In[5]:=
Click for copyable input
X
Out[5]=

For the no-bone marker, dilate the bone core more than what was eroded and extract the surface around the dilated volume.

In[6]:=
Click for copyable input
X
Out[6]=

Run the 3D grow-cut-algorithm to refine the segmentation.

In[7]:=
Click for copyable input
X
Out[7]=

Visualize the segmentation.

In[8]:=
Click for copyable input
X
Out[8]=

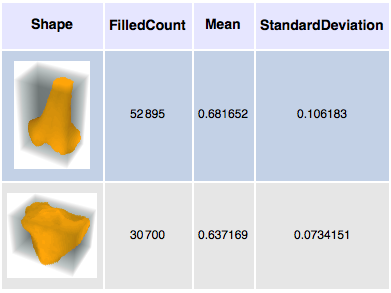

Size and density measurements can be calculated for each segment.

In[9]:=
Click for copyable input
X
Out[9]=
Out[37]//TraditionalForm=
