Enhanced Control Systems
Approximate a TimeDelay Model
A
TransferFunctionModel
with an delay in the denominator has infinitely many poles.
TransferFunctionPoles
can be used to plot all the poles in a given region.
In[1]:=
X
tfm = TransferFunctionModel[{{{20.}}, 30.  20. E^(s) + 0.1 s + s^2}, s, SamplingPeriod > None];
In[2]:=
X
delaypoles = Flatten@TransferFunctionPoles[tfm, {{10, 10}, {50, 50}}]; ListPlot[Table[{Re[p], Im[p]}, {p, delaypoles}], PlotMarkers > {Automatic, 8}]
Out[2]=
Use
SystemsModelDelayApproximate

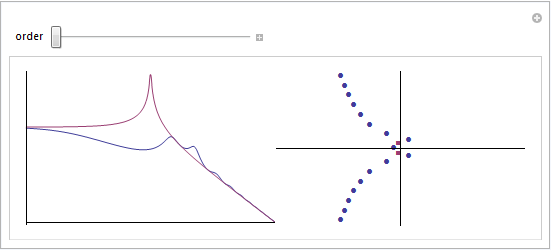

to obtain delayfree approximations of timedelay systems. As the order is increased, the approximations converge to the original model.
In[3]:=
X

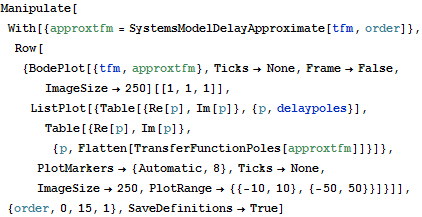

Manipulate[ With[{approxtfm = SystemsModelDelayApproximate[tfm, order]}, Row[{BodePlot[{tfm, approxtfm}, Ticks > None, Frame > False, ImageSize > 250][[1, 1, 1]], ListPlot[{Table[{Re[p], Im[p]}, {p, delaypoles}], Table[{Re[p], Im[p]}, {p, Flatten[TransferFunctionPoles[approxtfm]]}]}, PlotMarkers > {Automatic, 8}, Ticks > None, ImageSize > 250, PlotRange > {{10, 10}, {50, 50}}]}]], {order, 0, 15, 1}, SaveDefinitions > True]
Out[3]=
