New in Mathematica 9 › Survival Analysis

Lifetime of Cooling Fans

In[4]:=

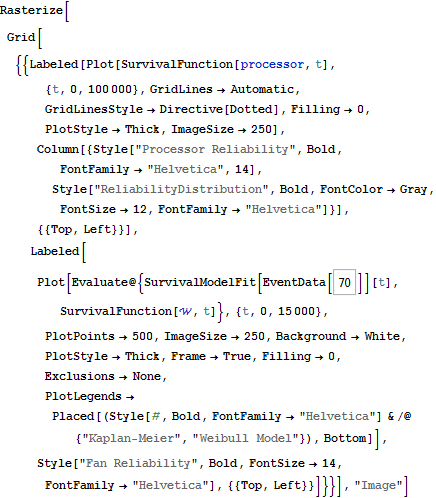

Rasterize[
 Grid[{{Labeled[
     Plot[SurvivalFunction[processor, t], {t, 0, 100000},
      GridLines -> Automatic, GridLinesStyle -> Directive[Dotted],
      Filling -> 0, PlotStyle -> Thick, ImageSize -> 250],
     Column[{Style["Processor Reliability", Bold,
        FontFamily -> "Helvetica", 14],
       Style["ReliabilityDistribution", Bold, FontColor -> Gray,
        FontSize -> 12, FontFamily -> "Helvetica"]}], {{Top, Left}}],
    Labeled[Plot[Evaluate@{SurvivalModelFit[\!\(\*
TagBox[
RowBox[{"EventData", "[",
PanelBox["70",
FrameMargins->Small], "]"}],
InterpretTemplate[EventData[Automatic,
Map[Developer`ToPackedArray, {{450, 1350, 3000, 4150, 4350, 6450,
                 3500, 460, 1150, 1150, 1560, 1600, 1660, 1350, 1350,
                 1350, 1350, 2030, 2030, 2030, 2070, 2070, 2030, 2200,
                  3000, 3000, 3000, 3100, 3200, 3450, 3750, 3750,
                 4150, 4150, 4150, 4300, 4300, 4300, 4300, 4600, 4350,
                  4350, 4350, 5000, 5000, 5000, 6100, 6100, 6100,
                 6100, 6300, 6450, 6700, 7450, 7300, 7300, 3100, 3100,
                  3200, 3500, 3500, 3750, 3750, 3750, 9400, 9900,
                 10100, 10100, 10100, 11500}, {0, 1, 1, 1, 1, 1, 1, 1,
                  0, 0, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1,
                 1, 1, 0, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1,
                  1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
                 1, 1, 0, 1, 1, 1, 1, 1, 1, 1}, None}]]& ],
Editable->False,
SelectWithContents->True,
Selectable->True]\)][t], SurvivalFunction[\[ScriptCapitalW], t]}, {t,
       0, 15000}, PlotPoints -> 500, ImageSize -> 250,
      Background -> White, PlotStyle -> Thick, Frame -> True,
      Filling -> 0, Exclusions -> None,
      PlotLegends ->
       Placed[(Style[#, Bold,
            FontFamily -> "Helvetica"] & /@ {"Kaplan-Meier",
           "Weibull Model"}), Bottom]],
     Style["Fan Reliability", Bold, FontSize -> 14,
      FontFamily -> "Helvetica"], {{Top, Left}}]}}], "Image"]

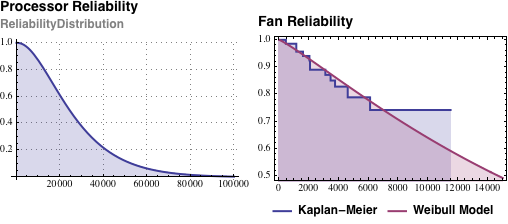

Suppose a processor has two cooling fans. The processor will not overheat as long as at least one fan is working. A collection of 70 such fans was selected at random and monitored for a fixed period of time. At the end of the monitoring, 12 fans had failed.

Assume a fan's lifetime follows a WeibullDistribution.

In[1]:=

\[ScriptCapitalW] = EstimatedDistribution[\!\(\*
TagBox[
RowBox[{"EventData", "[",
PanelBox["70",
FrameMargins->Small], "]"}],
InterpretTemplate[EventData[Automatic,
Map[Developer`ToPackedArray, {{450, 1350, 3000, 4150, 4350, 6450,
         3500, 460, 1150, 1150, 1560, 1600, 1660, 1350, 1350, 1350,
         1350, 2030, 2030, 2030, 2070, 2070, 2030, 2200, 3000, 3000,
         3000, 3100, 3200, 3450, 3750, 3750, 4150, 4150, 4150, 4300,
         4300, 4300, 4300, 4600, 4350, 4350, 4350, 5000, 5000, 5000,
         6100, 6100, 6100, 6100, 6300, 6450, 6700, 7450, 7300, 7300,
         3100, 3100, 3200, 3500, 3500, 3750, 3750, 3750, 9400, 9900,
         10100, 10100, 10100, 11500}, {0, 1, 1, 1, 1, 1, 1, 1, 0, 0,
         1, 0, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 1, 1, 1, 1, 0, 1, 0,
         1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1,
         1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1},
         None}]]& ],
Editable->False,
SelectWithContents->True,
Selectable->True]\), WeibullDistribution[\[Alpha], \[Beta]]]

Out[1]=

Create a model for processor overheating using the fan component models.

In[2]:=

Out[2]=

Estimate the mean processor lifetime.

In[3]:=

Out[3]=
