Симулирование тысяч частиц в режиме реального времени

In[1]:=

X srcf = FileNameJoin[{$OpenCLLinkPath, "SupportFiles", "NBody.cl"}];

In[2]:=

X NBody = OpenCLFunctionLoad[{srcf}, "nbody_sim", {{"Float4", _, "Input"}, {"Float4", _, "Input"}, _Integer, "Float", "Float", {"Local", "Float"}, {"Float4", _, "Output"}, {"Float4", _, "Output"}}, 256];

In[3]:=

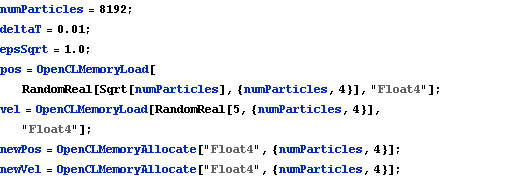

X numParticles = 8192; deltaT = 0.01; epsSqrt = 1.0; pos = OpenCLMemoryLoad[ RandomReal[Sqrt[numParticles], {numParticles, 4}], "Float4"]; vel = OpenCLMemoryLoad[RandomReal[5, {numParticles, 4}], "Float4"]; newPos = OpenCLMemoryAllocate["Float4", {numParticles, 4}]; newVel = OpenCLMemoryAllocate["Float4", {numParticles, 4}];

In[4]:=

X colors = Map[ColorData["CherryTones"], Range[0, 1, 1/numParticles]] //. RGBColor -> List;

In[5]:=

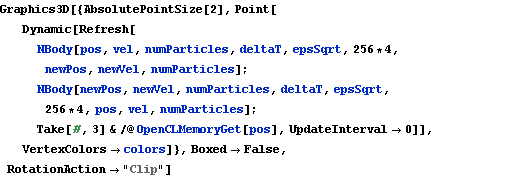

X Graphics3D[{AbsolutePointSize[2], Point[ Dynamic[Refresh[ NBody[pos, vel, numParticles, deltaT, epsSqrt, 256*4, newPos, newVel, numParticles]; NBody[newPos, newVel, numParticles, deltaT, epsSqrt, 256*4, pos, vel, numParticles]; Take[#, 3] & /@ OpenCLMemoryGet[pos], UpdateInterval -> 0]], VertexColors -> colors]}, Boxed -> False, RotationAction -> "Clip"]

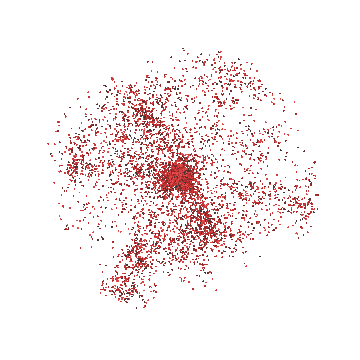

Play Animation » Stop Animation »
