8의 신기능: 그래프 및 네트워크 모델링
◄
이전
|
다음
►
응용 분야
자동화된 그래프 레이아웃
Mathematica
8은 그래프의 심미적 표현을 위해 그래프의 레이아웃과 관련 함수를 완벽히 자동화하여 지원합니다.
In[1]:=
X
layout = {Automatic, "CircularEmbedding", "HighDimensionalEmbedding", "LayeredDrawing", "RandomEmbedding", "SpiralEmbedding", "SpringElectricalEmbedding", "SpringEmbedding"};
In[2]:=
X

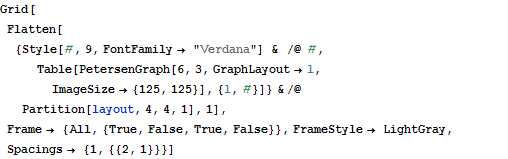

Grid[Flatten[{Style[#, 9, FontFamily -> "Verdana"] & /@ #, Table[PetersenGraph[6, 3, GraphLayout -> l, ImageSize -> {125, 125}], {l, #}]} & /@ Partition[layout, 4, 4, 1], 1], Frame -> {All, {True, False, True, False}}, FrameStyle -> LightGray, Spacings -> {1, {{2, 1}}}]

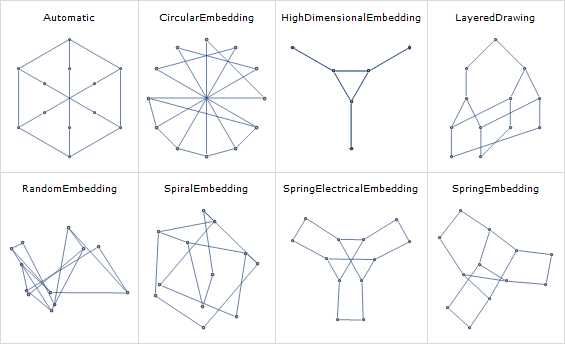

Out[2]=
