Построение стабилизаторов и наблюдателей для систем

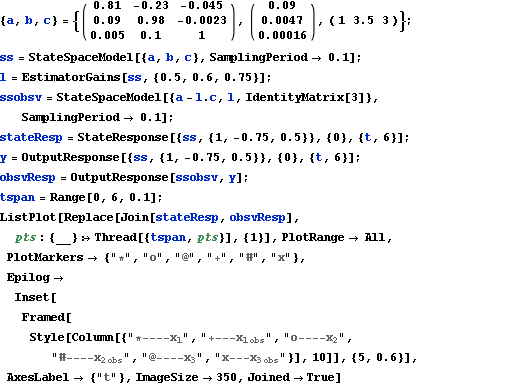

In[1]:=

X {a, b, c} = {( { {0.81, -0.23, -0.045}, {0.09, 0.98, -0.0023}, {0.005, 0.1, 1} } ), ( { {0.09}, {0.0047}, {0.00016} } ), ( { {1, 3.5, 3} } )}; ss = StateSpaceModel[{a, b, c}, SamplingPeriod -> 0.1]; l = EstimatorGains[ss, {0.5, 0.6, 0.75}]; ssobsv = StateSpaceModel[{a - l.c, l, IdentityMatrix[3]}, SamplingPeriod -> 0.1]; stateResp = StateResponse[{ss, {1, -0.75, 0.5}}, {0}, {t, 6}]; y = OutputResponse[{ss, {1, -0.75, 0.5}}, {0}, {t, 6}]; obsvResp = OutputResponse[ssobsv, y]; tspan = Range[0, 6, 0.1]; ListPlot[ Replace[Join[stateResp, obsvResp], pts : {__} :> Thread[{tspan, pts}], {1}], PlotRange -> All, PlotMarkers -> {"*", "o", "@", "+", "#", "x"}, Epilog -> Inset[Framed[ Style[Column[{"*----\!\(\*SubscriptBox[\(x\), \(1\)]\)", "+---\!\(\*SubscriptBox[\(x\), \(1 obs\)]\)", "o----\!\(\*SubscriptBox[\(x\), \(2\)]\)", "#----\!\(\*SubscriptBox[\(x\), \(2 obs\)]\)", "@----\!\(\*SubscriptBox[\(x\), \(3\)]\)", "x---\!\(\*SubscriptBox[\(x\), \(3 obs\)]\)"}], 10]], {5, 0.6}], AxesLabel -> {"t"}, ImageSize -> 350, Joined -> True]

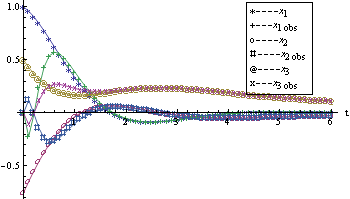

Out[1]=
