Algoritmos de núcleo

Funciones de distribución discreta bivariada

Compute y visualice funciones de distribución discreta multivariada.

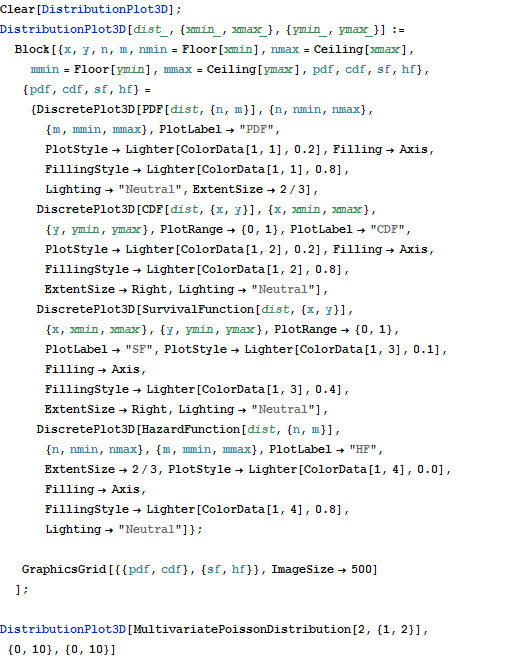

In[1]:=

Clear[DistributionPlot3D];

DistributionPlot3D[dist_, {xmin_, xmax_}, {ymin_, ymax_}] :=

Block[{x, y, n, m, nmin = Floor[xmin], nmax = Ceiling[xmax],

mmin = Floor[ymin], mmax = Ceiling[ymax], pdf, cdf, sf, hf},

{pdf, cdf, sf, hf} =

{DiscretePlot3D[

PDF[dist, {n, m}], {n, nmin, nmax}, {m, mmin, mmax},

PlotLabel -> "PDF", PlotStyle -> Lighter[ColorData[1, 1], 0.2],

Filling -> Axis, FillingStyle -> Lighter[ColorData[1, 1], 0.8],

Lighting -> "Neutral", ExtentSize -> 2/3],

DiscretePlot3D[

CDF[dist, {x, y}], {x, xmin, xmax}, {y, ymin, ymax},

PlotRange -> {0, 1}, PlotLabel -> "CDF",

PlotStyle -> Lighter[ColorData[1, 2], 0.2], Filling -> Axis,

FillingStyle -> Lighter[ColorData[1, 2], 0.8],

ExtentSize -> Right, Lighting -> "Neutral"],

DiscretePlot3D[

SurvivalFunction[dist, {x, y}], {x, xmin, xmax}, {y, ymin,

ymax}, PlotRange -> {0, 1}, PlotLabel -> "SF",

PlotStyle -> Lighter[ColorData[1, 3], 0.1], Filling -> Axis,

FillingStyle -> Lighter[ColorData[1, 3], 0.4],

ExtentSize -> Right, Lighting -> "Neutral"],

DiscretePlot3D[

HazardFunction[dist, {n, m}], {n, nmin, nmax}, {m, mmin, mmax},

PlotLabel -> "HF", ExtentSize -> 2/3,

PlotStyle -> Lighter[ColorData[1, 4], 0.0], Filling -> Axis,

FillingStyle -> Lighter[ColorData[1, 4], 0.8],

Lighting -> "Neutral"]};

GraphicsGrid[{{pdf, cdf}, {sf, hf}}, ImageSize -> 500]

];

DistributionPlot3D[

MultivariatePoissonDistribution[2, {1, 2}], {0, 10}, {0, 10}]

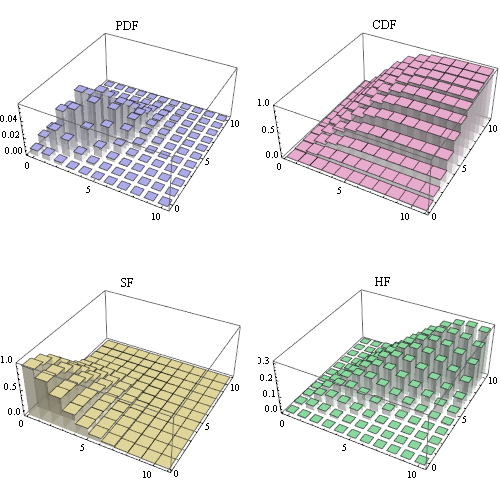

Out[1]=
