8의 신기능: 통계의 시각화
◄
이전
|
다음
►
그래픽 및 시각화
추정 분포 변수로 확률 그래프 그리기
데이터와 지정된 유형의 최적 분포도 변수와 비교하기 위한 확률-확률 그래프를 그려봅니다.
In[1]:=
X
data = RandomReal[UniformDistribution[{1, 2}], 25];
In[2]:=
X

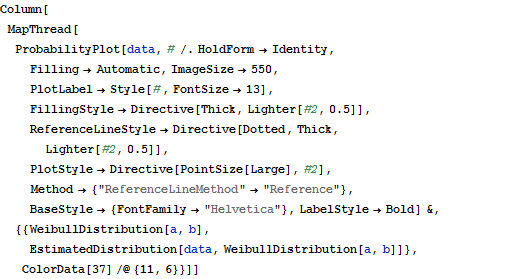

Column[MapThread[ ProbabilityPlot[data, # /. HoldForm -> Identity, Filling -> Automatic, ImageSize -> 550, PlotLabel -> Style[#, FontSize -> 13], FillingStyle -> Directive[Thick, Lighter[#2, 0.5]], ReferenceLineStyle -> Directive[Dotted, Thick, Lighter[#2, 0.5]], PlotStyle -> Directive[PointSize[Large], #2], Method -> {"ReferenceLineMethod" -> "Reference"}, BaseStyle -> {FontFamily -> "Helvetica"}, LabelStyle -> Bold] &, {{WeibullDistribution[a, b], EstimatedDistribution[data, WeibullDistribution[a, b]]}, ColorData[37] /@ {11, 6}}]]

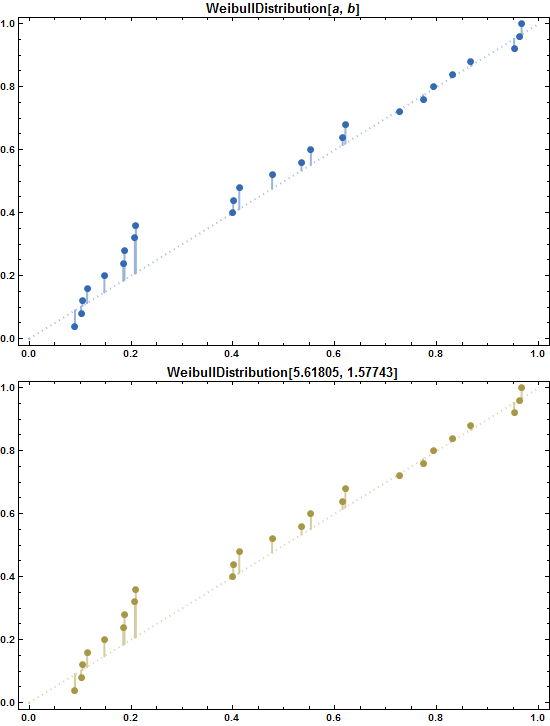

Out[2]=
