Прикладные области

Визуализация вейвлет-преобразования с помощью графика вдоль общей оси ординат

In[1]:=

X data = Table[Sin[450 x], {x, 0, 1, 1/1024}] + Table[Sin[50 x^2], {x, 0, 1, 1/1024}];

In[2]:=

X dwd = StationaryWaveletTransform[data, Automatic, 7];

In[3]:=

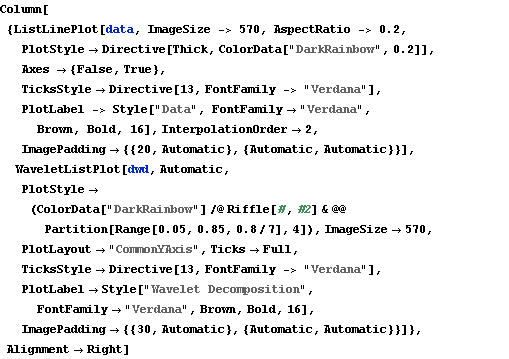

X Column[{ListLinePlot[data, ImageSize -> 570, AspectRatio -> 0.2, PlotStyle -> Directive[Thick, ColorData["DarkRainbow", 0.2]], Axes -> {False, True}, TicksStyle -> Directive[13, FontFamily -> "Verdana"], PlotLabel -> Style["Data", FontFamily -> "Verdana", Brown, Bold, 16], InterpolationOrder -> 2, ImagePadding -> {{20, Automatic}, {Automatic, Automatic}}], WaveletListPlot[dwd, Automatic, PlotStyle -> (ColorData["DarkRainbow"] /@ Riffle[#, #2] & @@ Partition[Range[0.05, 0.85, 0.8/7], 4]), ImageSize -> 570, PlotLayout -> "CommonYAxis", Ticks -> Full, TicksStyle -> Directive[13, FontFamily -> "Verdana"], PlotLabel -> Style["Wavelet Decomposition", FontFamily -> "Verdana", Brown, Bold, 16], ImagePadding -> {{30, Automatic}, {Automatic, Automatic}}]}, Alignment -> Right]

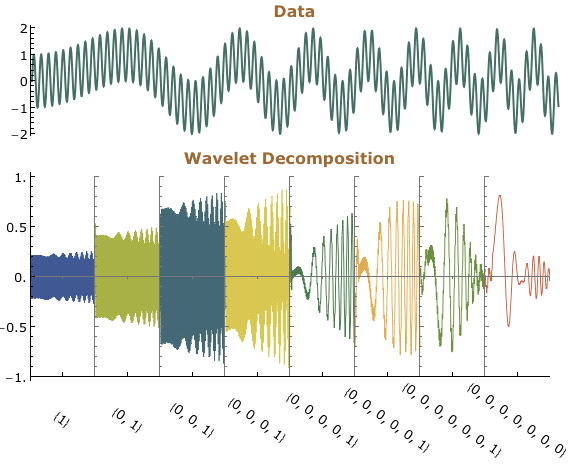

Out[3]=
