Задачи о назначениях

Факультет математики хотел бы предложить семь курсов. На факультете имеются восемь профессоров, каждый из которых хотел бы преподавать определённые курсы. Найдём максимальное соответствие, в котором каждый профессор преподаёт только выбранные им курсы.

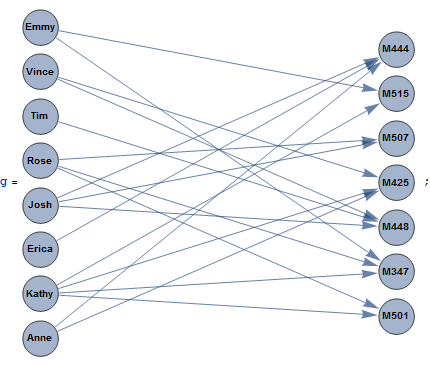

Построим двудольный граф, сопоставляющий профессоров и курсы, которые они хотели бы преподавать.

In[1]:=

g = \!\(\*
GraphicsBox[
NamespaceBox["NetworkGraphics",
DynamicModuleBox[{Typeset`graph = HoldComplete[
Graph[{"Anne", "Kathy", "Erica", "Josh", "Rose", "Tim", "Vince",
          "Emmy", "M501", "M347", "M448", "M425", "M507", "M515",
          "M444"}, {{{2, 9}, {5, 9}, {2, 10}, {5, 10}, {8, 10}, {4,
          11}, {6, 11}, {7, 11}, {1, 12}, {2, 12}, {7, 12}, {4, 13}, {
          5, 13}, {2, 14}, {8, 14}, {1, 15}, {3, 15}, {4, 15}},
          Null}, {GraphLayout -> "BipartiteEmbedding", VertexLabels -> {
Placed["Name", Center]}, VertexLabelStyle -> {
Directive[FontFamily -> "Ariel", 9.5, Bold]}, VertexSize -> {0.8}}]],
       Typeset`boxes, Typeset`boxes$s2d = GraphicsGroupBox[{{
Arrowheads[0.040554001611066946`],
Directive[
Opacity[0.7],
Hue[0.6, 0.7, 0.5]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$1", Automatic, Center],
DynamicLocation["VertexID$12", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$1", Automatic, Center],
DynamicLocation["VertexID$15", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$2", Automatic, Center],
DynamicLocation["VertexID$9", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$2", Automatic, Center],
DynamicLocation["VertexID$10", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$2", Automatic, Center],
DynamicLocation["VertexID$12", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$2", Automatic, Center],
DynamicLocation["VertexID$14", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$3", Automatic, Center],
DynamicLocation["VertexID$15", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$4", Automatic, Center],
DynamicLocation["VertexID$11", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$4", Automatic, Center],
DynamicLocation["VertexID$13", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$4", Automatic, Center],
DynamicLocation["VertexID$15", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$5", Automatic, Center],
DynamicLocation["VertexID$9", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$5", Automatic, Center],
DynamicLocation["VertexID$10", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$5", Automatic, Center],
DynamicLocation["VertexID$13", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$6", Automatic, Center],
DynamicLocation["VertexID$11", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$7", Automatic, Center],
DynamicLocation["VertexID$11", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$7", Automatic, Center],
DynamicLocation["VertexID$12", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$8", Automatic, Center],
DynamicLocation["VertexID$10", Automatic, Center]}]],
ArrowBox[
LineBox[{
DynamicLocation["VertexID$8", Automatic, Center],
DynamicLocation["VertexID$14", Automatic, Center]}]]}, {
Directive[
Hue[0.6, 0.2, 0.8],
EdgeForm[
Directive[
GrayLevel[0],
Opacity[0.7]]]],
TagBox[{
TagBox[
DiskBox[{0., -0.4840169943749475}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$1"],
InsetBox[
FormBox[
StyleBox["\"Anne\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$1", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$1"],
TagBox[{
TagBox[
DiskBox[{0., -0.345726424553534}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$2"],
InsetBox[
FormBox[
StyleBox["\"Kathy\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$2", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$2"],
TagBox[{
TagBox[
DiskBox[{0., -0.20743585473212037`}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$3"],
InsetBox[
FormBox[
StyleBox["\"Erica\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$3", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$3"],
TagBox[{
TagBox[
DiskBox[{0., -0.06914528491070679}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$4"],
InsetBox[
FormBox[
StyleBox["\"Josh\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$4", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$4"],
TagBox[{
TagBox[
DiskBox[{0., 0.06914528491070679}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$5"],
InsetBox[
FormBox[
StyleBox["\"Rose\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$5", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$5"],
TagBox[{
TagBox[
DiskBox[{0., 0.20743585473212037`}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$6"],
InsetBox[
FormBox[
StyleBox["\"Tim\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$6", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$6"],
TagBox[{
TagBox[
DiskBox[{0., 0.345726424553534}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$7"],
InsetBox[
FormBox[
StyleBox["\"Vince\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$7", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$7"],
TagBox[{
TagBox[
DiskBox[{0., 0.4840169943749475}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$8"],
InsetBox[
FormBox[
StyleBox["\"Emmy\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$8", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$8"],
TagBox[{
TagBox[
DiskBox[{1.1063245585713086`, -0.41487170946424073`},
              0.055316227928565415`], "DynamicName",
             BoxID -> "VertexID$9"],
InsetBox[
FormBox[
StyleBox["\"M501\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$9", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$9"],
TagBox[{
TagBox[
DiskBox[{1.1063245585713086`, -0.27658113964282716`},
              0.055316227928565415`], "DynamicName",
             BoxID -> "VertexID$10"],
InsetBox[
FormBox[
StyleBox["\"M347\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$10", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$10"],
TagBox[{
TagBox[
DiskBox[{1.1063245585713086`, -0.13829056982141358`},
              0.055316227928565415`], "DynamicName",
             BoxID -> "VertexID$11"],
InsetBox[
FormBox[
StyleBox["\"M448\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$11", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$11"],
TagBox[{
TagBox[
DiskBox[{1.1063245585713086`, 0.}, 0.055316227928565415`],
             "DynamicName", BoxID -> "VertexID$12"],
InsetBox[
FormBox[
StyleBox["\"M425\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$12", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$12"],
TagBox[{
TagBox[
DiskBox[{1.1063245585713086`, 0.13829056982141358`},
              0.055316227928565415`], "DynamicName",
             BoxID -> "VertexID$13"],
InsetBox[
FormBox[
StyleBox["\"M507\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$13", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$13"],
TagBox[{
TagBox[
DiskBox[{1.1063245585713086`, 0.27658113964282716`},
              0.055316227928565415`], "DynamicName",
             BoxID -> "VertexID$14"],
InsetBox[
FormBox[
StyleBox["\"M515\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$14", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$14"],
TagBox[{
TagBox[
DiskBox[{1.1063245585713086`, 0.41487170946424073`},
              0.055316227928565415`], "DynamicName",
             BoxID -> "VertexID$15"],
InsetBox[
FormBox[
StyleBox["\"M444\"",
Directive[FontFamily -> "Ariel", 9.5, Bold], StripOnInput -> False],
              TraditionalForm],
DynamicLocation["VertexID$15", None, Center],
             BaseStyle -> "Graphics"]}, "DynamicName",
           BoxID -> "VertexLabelID$15"]}}], $CellContext`flag},
TagBox[
DynamicBox[GraphComputation`NetworkGraphicsBox[
         3, Typeset`graph, Typeset`boxes, $CellContext`flag], {
         CachedValue :> Typeset`boxes, SingleEvaluation -> True,
          SynchronousUpdating -> False,
          TrackedSymbols :> {$CellContext`flag}},
ImageSizeCache->{{7., 393.}, {-174.32000000000002`,
          168.04363636363635`}}],
MouseAppearanceTag["NetworkGraphics"]],
AllowKernelInitialization->False,
UnsavedVariables:>{$CellContext`flag}]],
DefaultBaseStyle->{
      "NetworkGraphics",
       FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]},
FrameTicks->None,
ImageSize->{401., Automatic}]\);

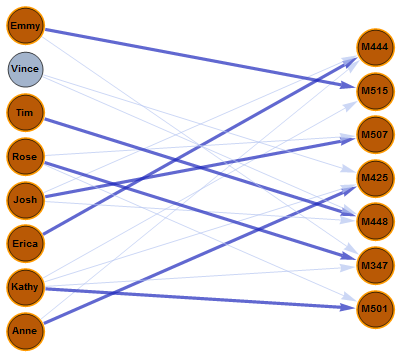

Максимальный поток от всех профессоров ко всем курсам даёт искомое соответствие.
