Новое в системе Wolfram Mathematica 9 › Расширенная поддержка графов и сетей

Новые и улучшенные укладки графов

Расширяя и без того богатую коллекцию укладок графов, система Mathematica 9 предоставляет новые возможности по визуализации графов, обладающих дополнительной структурой таких, как планарные графы, многодольные графы и деревья.

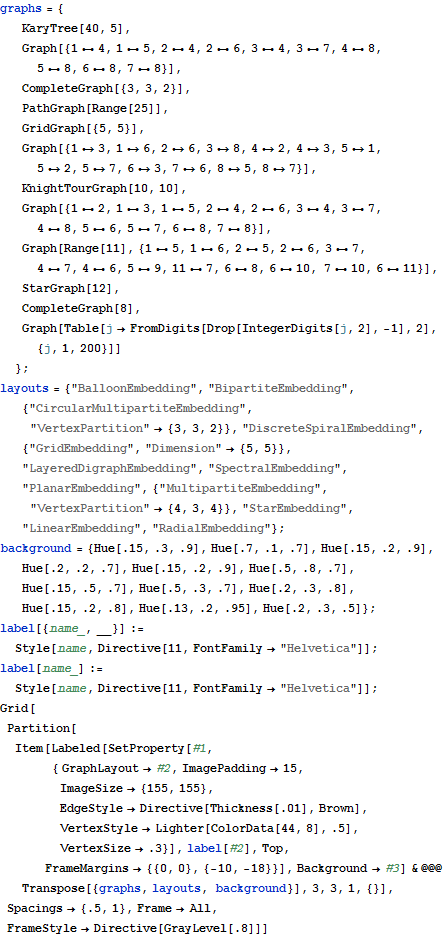

In[1]:=

graphs = {
   KaryTree[40, 5],
   Graph[{1 \[UndirectedEdge] 4, 1 \[UndirectedEdge] 5,
     2 \[UndirectedEdge] 4, 2 \[UndirectedEdge] 6,
     3 \[UndirectedEdge] 4, 3 \[UndirectedEdge] 7,
     4 \[UndirectedEdge] 8, 5 \[UndirectedEdge] 8,
     6 \[UndirectedEdge] 8, 7 \[UndirectedEdge] 8}],
   CompleteGraph[{3, 3, 2}],
   PathGraph[Range[25]],
   GridGraph[{5, 5}],
   Graph[{1 \[DirectedEdge] 3, 1 \[DirectedEdge] 6,
     2 \[DirectedEdge] 6, 3 \[DirectedEdge] 8, 4 \[DirectedEdge] 2,
     4 \[DirectedEdge] 3, 5 \[DirectedEdge] 1, 5 \[DirectedEdge] 2,
     5 \[DirectedEdge] 7, 6 \[DirectedEdge] 3, 7 \[DirectedEdge] 6,
     8 \[DirectedEdge] 5, 8 \[DirectedEdge] 7}],
   KnightTourGraph[10, 10],
   Graph[{1 \[UndirectedEdge] 2, 1 \[UndirectedEdge] 3,
     1 \[UndirectedEdge] 5, 2 \[UndirectedEdge] 4,
     2 \[UndirectedEdge] 6, 3 \[UndirectedEdge] 4,
     3 \[UndirectedEdge] 7, 4 \[UndirectedEdge] 8,
     5 \[UndirectedEdge] 6, 5 \[UndirectedEdge] 7,
     6 \[UndirectedEdge] 8, 7 \[UndirectedEdge] 8}],
   Graph[Range[11], {1 \[UndirectedEdge] 5, 1 \[UndirectedEdge] 6,
     2 \[UndirectedEdge] 5, 2 \[UndirectedEdge] 6,
     3 \[UndirectedEdge] 7, 4 \[UndirectedEdge] 7,
     4 \[UndirectedEdge] 6, 5 \[UndirectedEdge] 9,
     11 \[UndirectedEdge] 7, 6 \[UndirectedEdge] 8,
     6 \[UndirectedEdge] 10, 7 \[UndirectedEdge] 10,
     6 \[UndirectedEdge] 11}],
   StarGraph[12],
   CompleteGraph[8],
   Graph[Table[
     j -> FromDigits[Drop[IntegerDigits[j, 2], -1], 2], {j, 1, 200}]]
   };
layouts = {"BalloonEmbedding",
   "BipartiteEmbedding", {"CircularMultipartiteEmbedding",
    "VertexPartition" -> {3, 3, 2}},
   "DiscreteSpiralEmbedding", {"GridEmbedding",
    "Dimension" -> {5, 5}}, "LayeredDigraphEmbedding",
   "SpectralEmbedding",
   "PlanarEmbedding", {"MultipartiteEmbedding",
    "VertexPartition" -> {4, 3, 4}}, "StarEmbedding",
   "LinearEmbedding", "RadialEmbedding"};
background = {Hue[.15, .3, .9], Hue[.7, .1, .7], Hue[.15, .2, .9],
   Hue[.2, .2, .7], Hue[.15, .2, .9], Hue[.5, .8, .7],
   Hue[.15, .5, .7], Hue[.5, .3, .7], Hue[.2, .3, .8],
   Hue[.15, .2, .8], Hue[.13, .2, .95], Hue[.2, .3, .5]};
label[{name_, __}] :=
  Style[name, Directive[11, FontFamily -> "Helvetica"]];
label[name_] := Style[name, Directive[11, FontFamily -> "Helvetica"]];
Grid[Partition[
  Item[Labeled[
      SetProperty[#1, { GraphLayout -> #2, ImagePadding -> 15,
        ImageSize -> {155, 155},
        EdgeStyle -> Directive[Thickness[.01], Brown],
        VertexStyle -> Lighter[ColorData[44, 8], .5],
        VertexSize -> .3}], label[#2], Top,
      FrameMargins -> {{0, 0}, {-10, -18}}], Background -> #3] & @@@
   Transpose[{graphs, layouts, background}], 3, 3, 1, {}],
 Spacings -> {.5, 1}, Frame -> All,
 FrameStyle -> Directive[GrayLevel[.8]]]

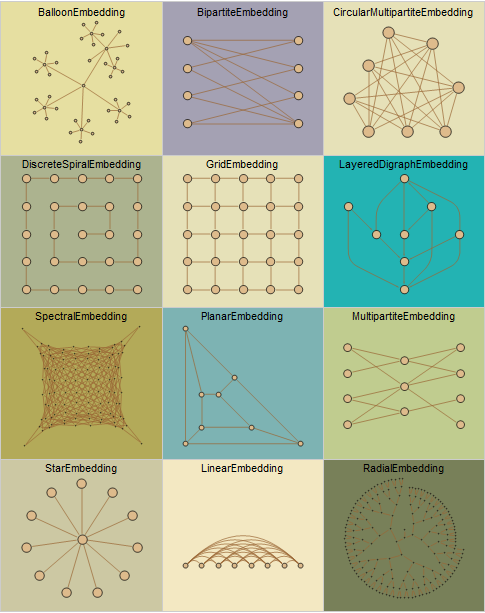

Out[1]=
