Сочетания графика с легендой с другими графиками

In[1]:=

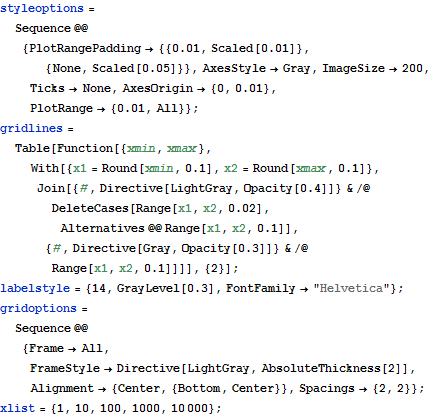

X styleoptions = Sequence @@ {PlotRangePadding -> {{0.01, Scaled[0.01]}, {None, Scaled[0.05]}}, AxesStyle -> Gray, ImageSize -> 200, Ticks -> None, AxesOrigin -> {0, 0.01}, PlotRange -> {0.01, All}}; gridlines = Table[Function[{xmin, xmax}, With[{x1 = Round[xmin, 0.1], x2 = Round[xmax, 0.1]}, Join[{#, Directive[LightGray, Opacity[0.4]]} & /@ DeleteCases[Range[x1, x2, 0.02], Alternatives @@ Range[x1, x2, 0.1]], {#, Directive[Gray, Opacity[0.3]]} & /@ Range[x1, x2, 0.1]]]], {2}]; labelstyle = {14, GrayLevel[0.3], FontFamily -> "Helvetica"}; gridoptions = Sequence @@ {Frame -> All, FrameStyle -> Directive[LightGray, AbsoluteThickness[2]], Alignment -> {Center, {Bottom, Center}}, Spacings -> {2, 2}}; xlist = {1, 10, 100, 1000, 10000};

Строим график функции с различными значениями параметра, указанными в легенде.

In[2]:=

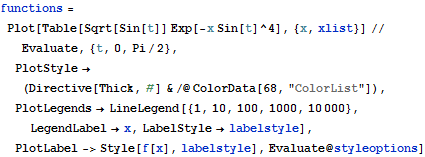

X functions = Plot[Table[Sqrt[Sin[t]] Exp[-x Sin[t]^4], {x, xlist}] // Evaluate, {t, 0, Pi/2}, PlotStyle -> (Directive[Thick, #] & /@ ColorData[68, "ColorList"]), PlotLegends -> LineLegend[{1, 10, 100, 1000, 10000}, LegendLabel -> x, LabelStyle -> labelstyle], PlotLabel -> Style[f[x], labelstyle], Evaluate@styleoptions]

Out[2]=

Строим график асимптотического приближения функции для тех же значений параметров.

In[3]:=

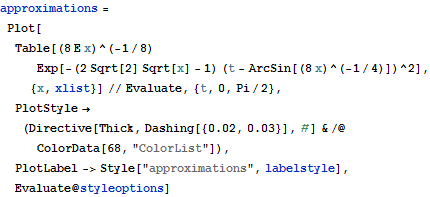

X approximations = Plot[Table[(8 E x)^(-1/ 8) Exp[-(2 Sqrt[2] Sqrt[x] - 1) (t - ArcSin[(8 x)^(-1/4)])^2], {x, xlist}] // Evaluate, {t, 0, Pi/2}, PlotStyle -> (Directive[Thick, Dashing[{0.02, 0.03}], #] & /@ ColorData[68, "ColorList"]), PlotLabel -> Style["approximations", labelstyle], Evaluate@styleoptions]

Out[3]=

Комбинируем графики, включая легенду, и указываем значения дополнительных опций.

In[4]:=

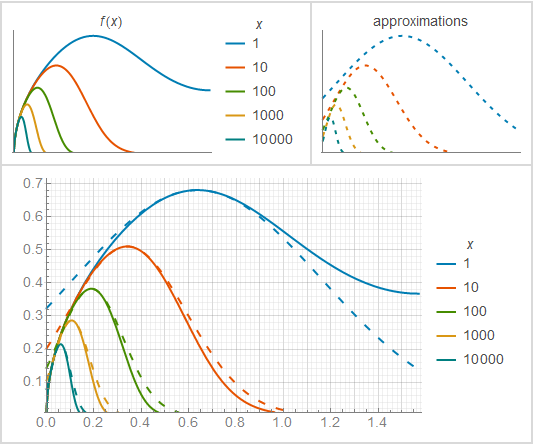

X Grid[{{functions, approximations}, {Show[functions, approximations, ImageSize -> 400, GridLines -> gridlines, LabelStyle -> labelstyle, PlotLabel -> None, Ticks -> Automatic], SpanFromLeft}}, Evaluate@gridoptions]
