Гибкость размещения легенд

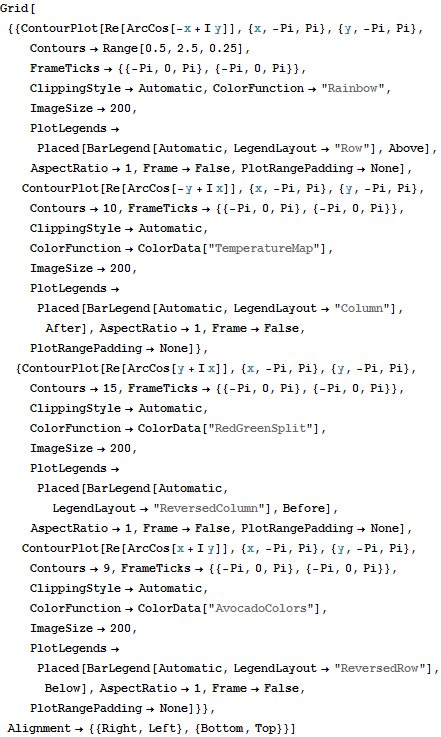

In[1]:=

Grid[{{ContourPlot[Re[ArcCos[-x + I y]], {x, -Pi, Pi}, {y, -Pi, Pi},
    Contours -> Range[0.5, 2.5, 0.25],
    FrameTicks -> {{-Pi, 0, Pi}, {-Pi, 0, Pi}},
    ClippingStyle -> Automatic, ColorFunction -> "Rainbow",
    ImageSize -> 200,
    PlotLegends ->
     Placed[BarLegend[Automatic, LegendLayout -> "Row"], Above],
    AspectRatio -> 1, Frame -> False, PlotRangePadding -> None],
   ContourPlot[Re[ArcCos[-y + I x]], {x, -Pi, Pi}, {y, -Pi, Pi},
    Contours -> 10, FrameTicks -> {{-Pi, 0, Pi}, {-Pi, 0, Pi}},
    ClippingStyle -> Automatic,
    ColorFunction -> ColorData["TemperatureMap"], ImageSize -> 200,
    PlotLegends ->
     Placed[BarLegend[Automatic, LegendLayout -> "Column"], After],
    AspectRatio -> 1, Frame -> False,
    PlotRangePadding -> None]}, {ContourPlot[
    Re[ArcCos[y + I x]], {x, -Pi, Pi}, {y, -Pi, Pi}, Contours -> 15,
    FrameTicks -> {{-Pi, 0, Pi}, {-Pi, 0, Pi}},
    ClippingStyle -> Automatic,
    ColorFunction -> ColorData["RedGreenSplit"], ImageSize -> 200,
    PlotLegends ->
     Placed[BarLegend[Automatic, LegendLayout -> "ReversedColumn"],
      Before], AspectRatio -> 1, Frame -> False,
    PlotRangePadding -> None],
   ContourPlot[Re[ArcCos[x + I y]], {x, -Pi, Pi}, {y, -Pi, Pi},
    Contours -> 9, FrameTicks -> {{-Pi, 0, Pi}, {-Pi, 0, Pi}},
    ClippingStyle -> Automatic,
    ColorFunction -> ColorData["AvocadoColors"], ImageSize -> 200,
    PlotLegends ->
     Placed[BarLegend[Automatic, LegendLayout -> "ReversedRow"],
      Below], AspectRatio -> 1, Frame -> False,
    PlotRangePadding -> None]}},
 Alignment -> {{Right, Left}, {Bottom, Top}}]

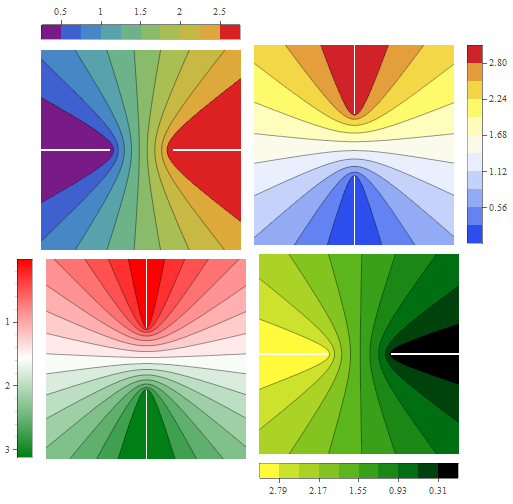

Управление положением и ориентацией легенд.
