Model Standby Systems

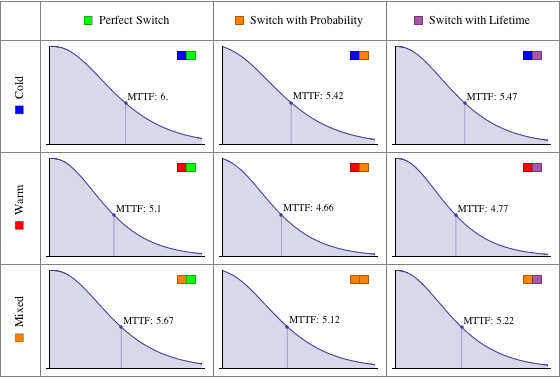

Compare mean time to failure (MTTF) between different kinds of standby systems.

In[1]:=

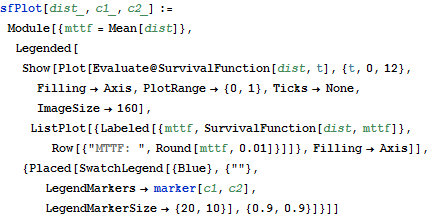

In[2]:=

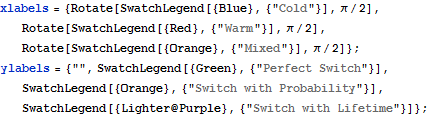

In[3]:=

In[4]:=

In[5]:=

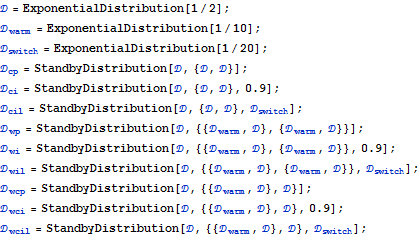

\[ScriptCapitalD] = ExponentialDistribution[1/2];
Subscript[\[ScriptCapitalD], warm] = ExponentialDistribution[1/10];
Subscript[\[ScriptCapitalD], switch] = ExponentialDistribution[1/20];
Subscript[\[ScriptCapitalD], cp] =
  StandbyDistribution[\[ScriptCapitalD], {\[ScriptCapitalD], \
\[ScriptCapitalD]}];
Subscript[\[ScriptCapitalD], ci] =
  StandbyDistribution[\[ScriptCapitalD], {\[ScriptCapitalD], \
\[ScriptCapitalD]}, 0.9];
Subscript[\[ScriptCapitalD], cil] =
  StandbyDistribution[\[ScriptCapitalD], {\[ScriptCapitalD], \
\[ScriptCapitalD]}, Subscript[\[ScriptCapitalD], switch]];
Subscript[\[ScriptCapitalD], wp] =
  StandbyDistribution[\[ScriptCapitalD], \
{{Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}, {Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}}];
Subscript[\[ScriptCapitalD], wi] =
  StandbyDistribution[\[ScriptCapitalD], \
{{Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}, {Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}}, 0.9];
Subscript[\[ScriptCapitalD], wil] =
  StandbyDistribution[\[ScriptCapitalD], \
{{Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}, {Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}}, Subscript[\[ScriptCapitalD], switch]];
Subscript[\[ScriptCapitalD], wcp] =
  StandbyDistribution[\[ScriptCapitalD], \
{{Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}, \[ScriptCapitalD]}];
Subscript[\[ScriptCapitalD], wci] =
  StandbyDistribution[\[ScriptCapitalD], \
{{Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}, \[ScriptCapitalD]}, 0.9];
Subscript[\[ScriptCapitalD], wcil] =
  StandbyDistribution[\[ScriptCapitalD], \
{{Subscript[\[ScriptCapitalD],
     warm], \[ScriptCapitalD]}, \[ScriptCapitalD]},
   Subscript[\[ScriptCapitalD], switch]];

In[6]:=

In[7]:=

In[8]:=

Out[8]=
