Interactively Explore New Frontiers
Mathematica 6 makes it possible to explore new phenomena by direct interactive exploration—here a space of nonlinear PDEs.
In[1]:=

Click for copyable input

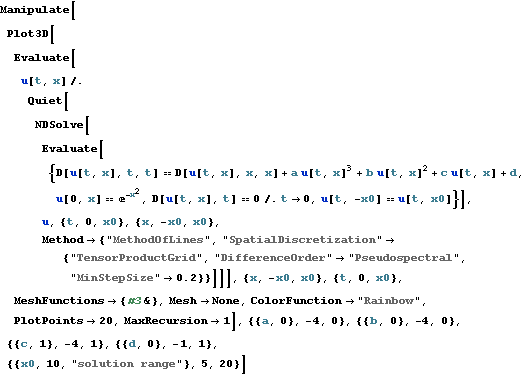

Manipulate[

 Plot3D[Evaluate[

   u[t, x] /.

    Quiet[NDSolve[

      Evaluate[{D[u[t, x], t, t] ==

         D[u[t, x], x, x] + a u[t, x]^3 + b u[t, x]^2 + c u[t, x] + d,

         u[0, x] == \[ExponentialE]^-x^2,

        D[u[t, x], t] == 0 /. t -> 0, u[t, -x0] == u[t, x0]}],

      u, {t, 0, x0}, {x, -x0, x0},

      Method -> {"MethodOfLines",

        "SpatialDiscretization" -> {"TensorProductGrid",

          "DifferenceOrder" -> "Pseudospectral",

          "MinStepSize" -> 0.2}}]]], {x, -x0, x0}, {t, 0, x0},

  MeshFunctions -> {#3 &}, Mesh -> None, ColorFunction -> "Rainbow",

  PlotPoints -> 20, MaxRecursion -> 1], {{a, 0}, -4, 0}, {{b, 0}, -4,

  0}, {{c, 1}, -4, 1}, {{d, 0}, -1, 1},

 {{x0, 10, "solution range"}, 5, 20}]
Out[1]=
