New in Wolfram Mathematica 6: New Generation Numerical Integration ◄ previous | next ►
Choose between State-of-the-Art Methods

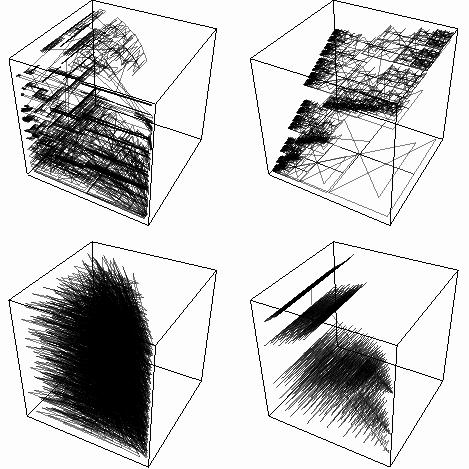

In addition to its automatic algorithm selection, Mathematica 6 provides detailed control over methods used. This shows successive points sampled in four different methods.

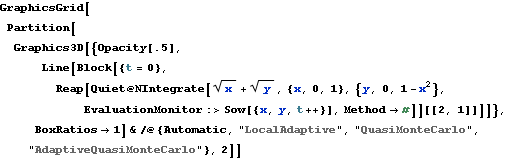

In[1]:=

Click for copyable input
GraphicsGrid[

 Partition[

  Graphics3D[{Opacity[.5],

      Line[Block[{t = 0},

        Reap[Quiet@

           NIntegrate[Sqrt[x] + Sqrt[y], {x, 0, 1}, {y, 0, 1 - x^2},

            EvaluationMonitor :> Sow[{x, y, t++}], Method -> #]][[2,

         1]]]]}, BoxRatios -> 1] & /@ {Automatic, "LocalAdaptive",

    "QuasiMonteCarlo", "AdaptiveQuasiMonteCarlo"}, 2]]
Out[1]=
