New in Wolfram Mathematica 7: Comprehensive Spline Support ◄ previous | next ►
Automatically Select Composite Bézier Curve Degrees
Composite Bézier curves in 2D and 3D are also supported with automatic degree control.

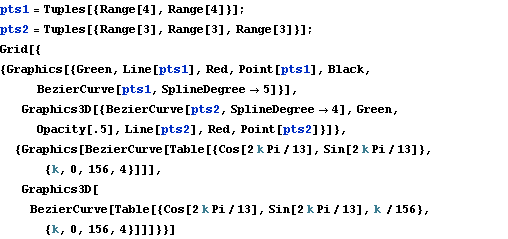

In[1]:=

Click for copyable input
pts1 = Tuples[{Range[4], Range[4]}];

pts2 = Tuples[{Range[3], Range[3], Range[3]}];

Grid[{

  {Graphics[{Green, Line[pts1], Red, Point[pts1], Black,

     BezierCurve[pts1, SplineDegree -> 5]}],

   Graphics3D[{BezierCurve[pts2, SplineDegree -> 4], Green,

     Opacity[.5], Line[pts2], Red, Point[pts2]}]}, {Graphics[

    BezierCurve[

     Table[{Cos[2 k Pi/13], Sin[2 k Pi/13]}, {k, 0, 156, 4}]]],

   Graphics3D[

    BezierCurve[

     Table[{Cos[2 k Pi/13], Sin[2 k Pi/13], k /156}, {k, 0, 156,

       4}]]]}}]

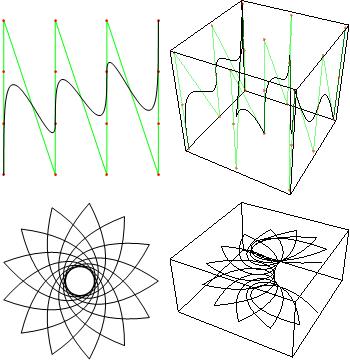

Out[1]=
