Gráficos y visualización

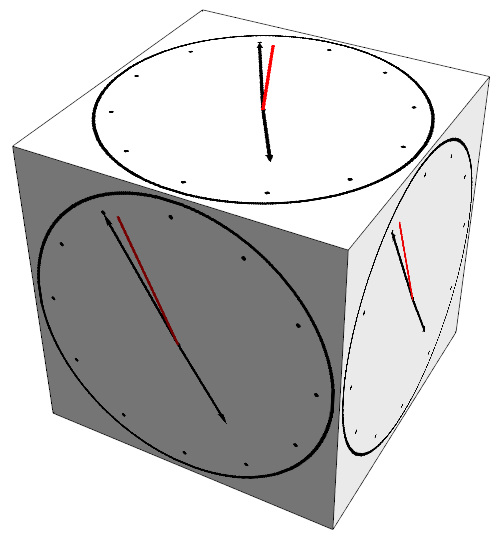

Texturas dinámicas en primitivas de gráficos

Cualquier expresión, incluyendo un objeto dinámico, puede usarse como textura.

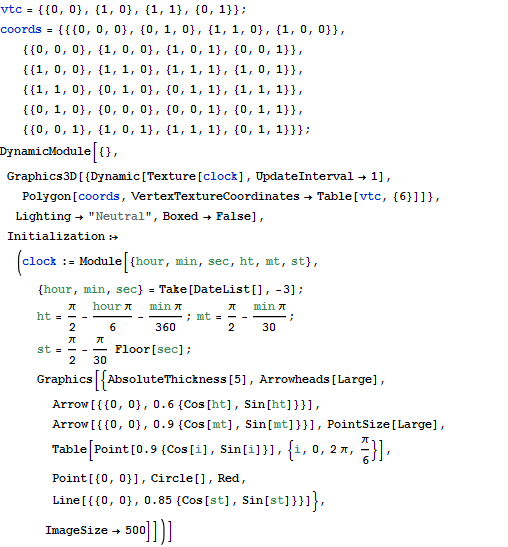

In[1]:=

vtc = {{0, 0}, {1, 0}, {1, 1}, {0, 1}};

coords = {{{0, 0, 0}, {0, 1, 0}, {1, 1, 0}, {1, 0, 0}}, {{0, 0,

0}, {1, 0, 0}, {1, 0, 1}, {0, 0, 1}}, {{1, 0, 0}, {1, 1, 0}, {1,

1, 1}, {1, 0, 1}}, {{1, 1, 0}, {0, 1, 0}, {0, 1, 1}, {1, 1,

1}}, {{0, 1, 0}, {0, 0, 0}, {0, 0, 1}, {0, 1, 1}}, {{0, 0,

1}, {1, 0, 1}, {1, 1, 1}, {0, 1, 1}}};

DynamicModule[{},

Graphics3D[{Dynamic[Texture[clock], UpdateInterval -> 1],

Polygon[coords, VertexTextureCoordinates -> Table[vtc, {6}]]},

Lighting -> "Neutral", Boxed -> False],

Initialization :> (clock :=

Module[{hour, min, sec, ht, mt, st}, {hour, min, sec} =

Take[DateList[], -3];

ht = \[Pi]/2 - (hour \[Pi])/6 - (min \[Pi])/360;

mt = \[Pi]/2 - (min \[Pi])/30;

st = \[Pi]/2 - \[Pi]/30  Floor[sec];

Graphics[{AbsoluteThickness[5], Arrowheads[Large],

Arrow[{{0, 0}, 0.6 {Cos[ht], Sin[ht]}}],

Arrow[{{0, 0}, 0.9 {Cos[mt], Sin[mt]}}], PointSize[Large],

Table[Point[0.9 {Cos[i], Sin[i]}], {i, 0, 2 \[Pi], \[Pi]/6}],

Point[{0, 0}], Circle[], Red,

Line[{{0, 0}, 0.85 {Cos[st], Sin[st]}}]}, ImageSize -> 500]])]
