그래픽 및 시각화

금융 이외의 데이터를 포함하는 차트 작성

In[1]:=

X temp = WeatherData["Chicago", "Temperature", {{2009, 1, 1}, {2009, 12, 31}, "Day"}];

In[2]:=

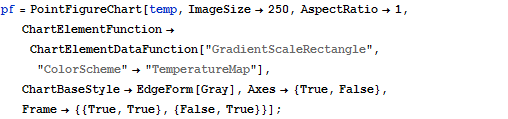

X pf = PointFigureChart[temp, ImageSize -> 250, AspectRatio -> 1, ChartElementFunction -> ChartElementDataFunction["GradientScaleRectangle", "ColorScheme" -> "TemperatureMap"], ChartBaseStyle -> EdgeForm[Gray], Axes -> {True, False}, Frame -> {{True, True}, {False, True}}];

In[3]:=

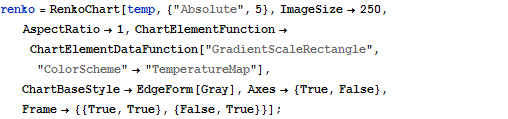

X renko = RenkoChart[temp, {"Absolute", 5}, ImageSize -> 250, AspectRatio -> 1, ChartElementFunction -> ChartElementDataFunction["GradientScaleRectangle", "ColorScheme" -> "TemperatureMap"], ChartBaseStyle -> EdgeForm[Gray], Axes -> {True, False}, Frame -> {{True, True}, {False, True}}];

In[4]:=

X lb = LineBreakChart[temp, ImageSize -> 250, AspectRatio -> 1, ChartElementFunction -> ChartElementDataFunction["GradientScaleRectangle", "ColorScheme" -> "ThermometerColors"], Axes -> {True, False}, Frame -> {{True, True}, {False, True}}];

In[5]:=

X datelist = DateListPlot[temp, ImageSize -> 250, AspectRatio -> 1];

In[6]:=

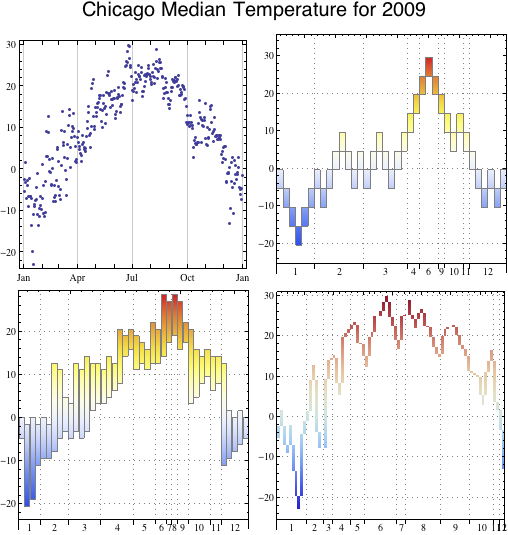

X Labeled[Grid[{{datelist, renko}, {pf, lb}}], Style["Chicago Median Temperature for 2009", 20, FontFamily -> "Helvetica"], Top]

Out[6]=
