Gráficos & Visualização

Destaque tendências com esquemas de cores diferentes

In[1]:=

X data = FinancialData["MSFT", "OHLC", {{2010, 1, 8}, {2010, 1, 15}}];

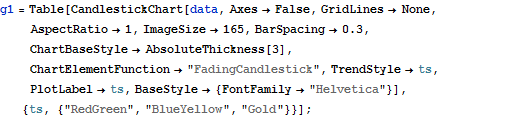

In[2]:=

X g1 = Table[ CandlestickChart[data, Axes -> False, GridLines -> None, AspectRatio -> 1, ImageSize -> 165, BarSpacing -> 0.3, ChartBaseStyle -> AbsoluteThickness[3], ChartElementFunction -> "FadingCandlestick", TrendStyle -> ts, PlotLabel -> ts, BaseStyle -> {FontFamily -> "Helvetica"}], {ts, {"RedGreen", "BlueYellow", "Gold"}}];

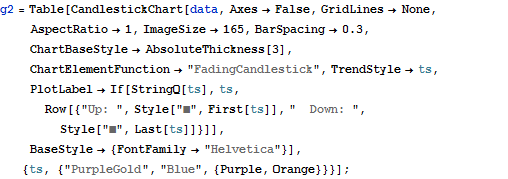

In[3]:=

X g2 = Table[ CandlestickChart[data, Axes -> False, GridLines -> None, AspectRatio -> 1, ImageSize -> 165, BarSpacing -> 0.3, ChartBaseStyle -> AbsoluteThickness[3], ChartElementFunction -> "FadingCandlestick", TrendStyle -> ts, PlotLabel -> If[StringQ[ts], ts, Row[{"Up: ", Style["\[FilledSquare]", First[ts]], " Down: ", Style["\[FilledSquare]", Last[ts]]}]], BaseStyle -> {FontFamily -> "Helvetica"}], {ts, {"PurpleGold", "Blue", {Purple, Orange}}}];

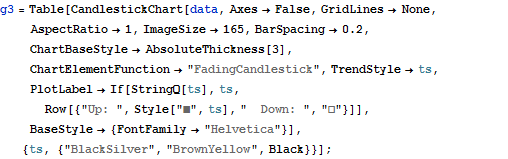

In[4]:=

X g3 = Table[ CandlestickChart[data, Axes -> False, GridLines -> None, AspectRatio -> 1, ImageSize -> 165, BarSpacing -> 0.2, ChartBaseStyle -> AbsoluteThickness[3], ChartElementFunction -> "FadingCandlestick", TrendStyle -> ts, PlotLabel -> If[StringQ[ts], ts, Row[{"Up: ", Style["\[FilledSquare]", ts], " Down: ", "\[EmptySquare]"}]], BaseStyle -> {FontFamily -> "Helvetica"}], {ts, {"BlackSilver", "BrownYellow", Black}}];

In[5]:=

X Grid[{g1, g2, g3}]

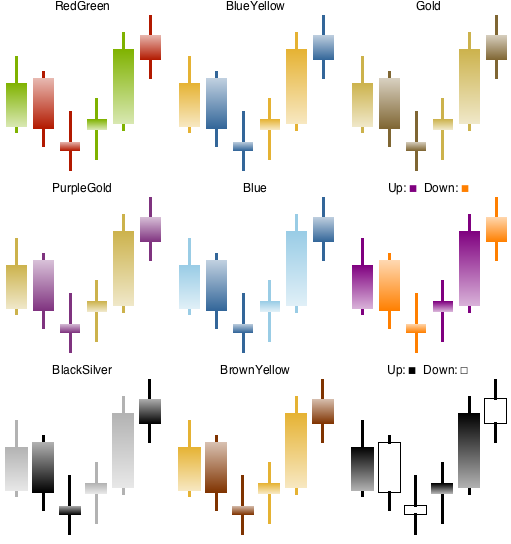

Out[5]=
