The Frequency Response of a Time-Delay System

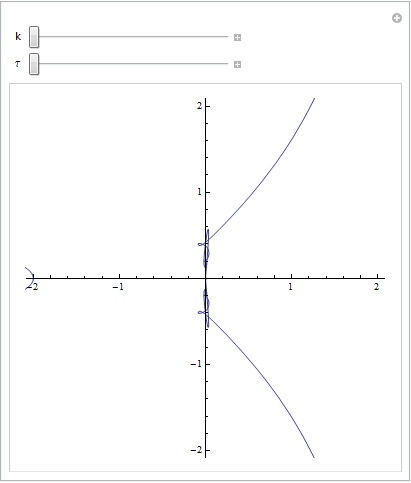

The NyquistPlot of a model with an internal time delay .

In[1]:=

X Manipulate[ NyquistPlot[ TransferFunctionModel[ Unevaluated[{{500/(-500 k SystemsModelDelay[\[Tau]] - s)}}], s, SamplingPeriod ->None, SystemsModelLabels -> None], MaxRecursion -> 12, PlotRange -> {{-2, 2}, {-2, 2}}], {k, 0.5, 3}, {\[Tau], 0.005, 0.02}, ContinuousAction -> False]

Out[1]=

Play Animation » Stop Animation »
