Новое в системе Wolfram Mathematica 9 › Интерактивные индикаторы

Создание пользовательских измерительных приборов

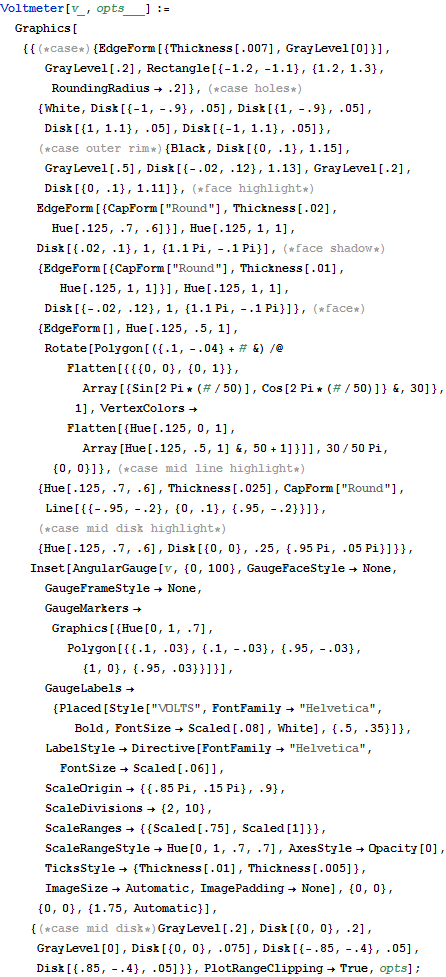

In[1]:=

Voltmeter[v_, opts___] :=
  Graphics[{{(*case*){EdgeForm[{Thickness[.007], GrayLevel[0]}],
      GrayLevel[.2],
      Rectangle[{-1.2, -1.1}, {1.2, 1.3},
       RoundingRadius -> .2]},(*case holes*){White,
      Disk[{-1, -.9}, .05], Disk[{1, -.9}, .05], Disk[{1, 1.1}, .05],
      Disk[{-1, 1.1}, .05]},(*case outer rim*){Black,
      Disk[{0, .1}, 1.15], GrayLevel[.5], Disk[{-.02, .12}, 1.13],
      GrayLevel[.2], Disk[{0, .1}, 1.11]},(*face highlight*)
     EdgeForm[{CapForm["Round"], Thickness[.02], Hue[.125, .7, .6]}],
     Hue[.125, 1, 1],
     Disk[{.02, .1},
      1, {1.1 Pi, -.1 Pi}],(*face shadow*){EdgeForm[{CapForm["Round"],
         Thickness[.01], Hue[.125, 1, 1]}], Hue[.125, 1, 1],
      Disk[{-.02, .12}, 1, {1.1 Pi, -.1 Pi}]},(*face*){EdgeForm[],
      Hue[.125, .5, 1],
      Rotate[Polygon[({.1, -.04} + # &) /@
         Flatten[{{{0, 0}, {0, 1}},
           Array[{Sin[2 Pi*(#/50)], Cos[2 Pi*(#/50)]} &, 30]}, 1],
        VertexColors ->
         Flatten[{Hue[.125, 0, 1],
           Array[Hue[.125, .5, 1] &, 50 + 1]}]],
       30/50 Pi, {0,
        0}]},(*case mid line highlight*){Hue[.125, .7, .6],
      Thickness[.025], CapForm["Round"],
      Line[{{-.95, -.2}, {0, .1}, {.95, -.2}}]},(*case mid disk \
highlight*){Hue[.125, .7, .6], Disk[{0, 0}, .25, {.95 Pi, .05 Pi}]}},
    Inset[
     AngularGauge[v, {0, 100}, GaugeFaceStyle -> None,
      GaugeFrameStyle -> None,
      GaugeMarkers ->
       Graphics[{Hue[0, 1, .7],
         Polygon[{{.1, .03}, {.1, -.03}, {.95, -.03}, {1,
            0}, {.95, .03}}]}],
      GaugeLabels -> {Placed[
         Style["VOLTS", FontFamily -> "Helvetica", Bold,
          FontSize -> Scaled[.08], White], {.5, .35}]},
      LabelStyle ->
       Directive[FontFamily -> "Helvetica", FontSize -> Scaled[.06]],
      ScaleOrigin -> {{.85 Pi, .15 Pi}, .9},
      ScaleDivisions -> {2, 10},
      ScaleRanges -> {{Scaled[.75], Scaled[1]}},
      ScaleRangeStyle -> Hue[0, 1, .7, .7], AxesStyle -> Opacity[0],
      TicksStyle -> {Thickness[.01], Thickness[.005]},
      ImageSize -> Automatic, ImagePadding -> None], {0, 0}, {0,
      0}, {1.75, Automatic}], {(*case mid disk*)GrayLevel[.2],
     Disk[{0, 0}, .2], GrayLevel[0], Disk[{0, 0}, .075],
     Disk[{-.85, -.4}, .05], Disk[{.85, -.4}, .05]}},
   PlotRangeClipping -> True, opts];

Создание пользовательских измерительных приборов за счёт сочетания встроенных индикаторов и графики.

In[2]:=

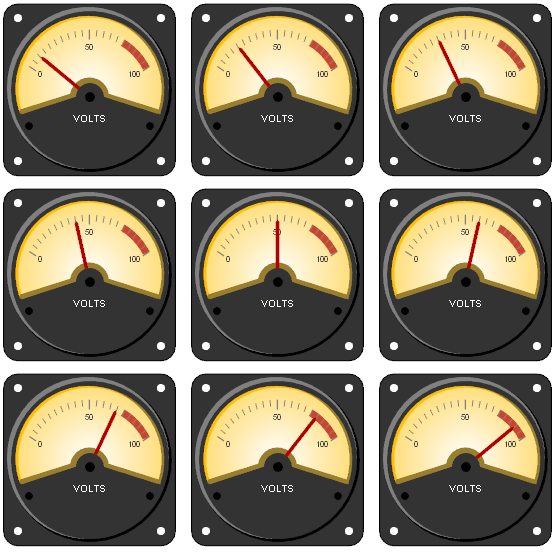

Out[2]=
