New in Wolfram Mathematica 6: Real-Time 3D Graphics ◄ previous | next ►
Full Real-Time Lighting Models
Mathematica 6 adds support for multiple lighting models that can be used in real time.
In[1]:=

Click for copyable input
p1[\[Theta]_] := RotationTransform[\[Theta], {0, 0, 1}][{0, 2, 0}];
In[2]:=

Click for copyable input
p2[\[Theta]_] :=

  RotationTransform[\[Theta] + Pi/2, {1, 0, 1}][{0, 2, 0}];
In[3]:=

Click for copyable input
p3[\[Theta]_] :=

  RotationTransform[\[Theta] + Pi, {1, 0, 0}][{0, 2, 0}];
In[4]:=

Click for copyable input
p4[\[Theta]_] :=

  RotationTransform[\[Theta] + 3 Pi/2, {1, 0, -1}][{0, 2, 0}];
In[5]:=

Click for copyable input

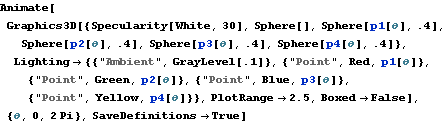

Animate[Graphics3D[{Specularity[White, 30], Sphere[],

   Sphere[p1[\[Theta]], .4], Sphere[p2[\[Theta]], .4],

   Sphere[p3[\[Theta]], .4], Sphere[p4[\[Theta]], .4]},

  Lighting -> {{"Ambient", GrayLevel[.1]}, {"Point", Red,

     p1[\[Theta]]}, {"Point", Green, p2[\[Theta]]}, {"Point", Blue,

     p3[\[Theta]]}, {"Point", Yellow, p4[\[Theta]]}},

  PlotRange -> 2.5, Boxed -> False], {\[Theta], 0, 2 Pi},

 SaveDefinitions -> True]
Out[5]=
