AC-DC Full-Wave Rectifier

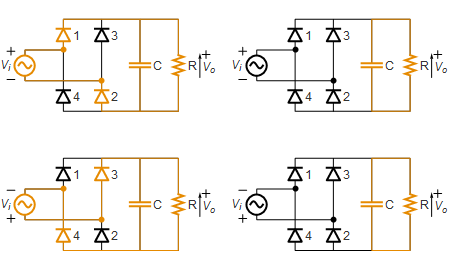

Model an AC-to-DC full-wave rectifier with four diodes and a capacitor for smoothing the output.

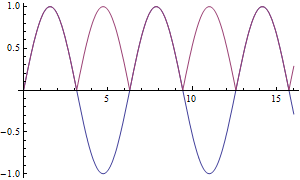

Plot the input voltage vi and the voltage rectified by the diodes, vr.

In[1]:=

X vi[t_] = Sin[t] ; vr[t_] = Abs[vi[t]] // PiecewiseExpand[#, t \[Element] Reals] &; Plot[{vi[t], vr[t]}, {t, 0, 16}]

Out[1]=

When vr increases, vo[t]=vr[t]; it charges the capacitor and supplies current to the load. When vr starts to decrease (vr'[t]<0), the capacitor discharges through the load and the output voltage follows vo'[t]=vo[t]/cr.

In[2]:=

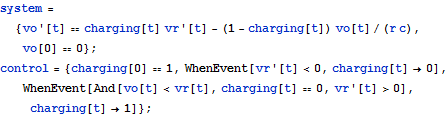

X system = {vo'[t] == charging[t] vr'[t] - (1 - charging[t]) vo[t]/(r c), vo[0] == 0}; control = {charging[0] == 1, WhenEvent[vr'[t] < 0, charging[t] -> 0], WhenEvent[And[vo[t] < vr[t], charging[t] == 0, vr'[t] > 0], charging[t] -> 1]};

Simulate the system.

In[3]:=

X pars = {r -> 0.1, c -> 1000}; sol = NDSolve[{system, control} /. pars, vo, {t, 0, 16}, DiscreteVariables -> charging \[Element] {0, 1}];

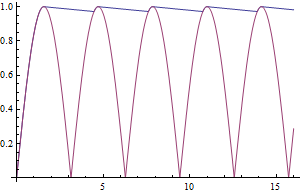

Plot the output voltage smoothened by the capacitor.

In[4]:=

X Plot[{vo[t] /. sol, vr[t]}, {t, 0, 16}]

Out[4]=
