Wolfram 语言

计算摄影

导入和分析来自社交媒体的图集

ServiceConnect 收集来自 Flickr 的图像,然后 Import,获取其内嵌的元信息,你便可以计算出有关所得图像的各种统计数据.

In[1]:=
Click for copyable input
ServiceConnect["Flickr"]
In[2]:=
Click for copyable input
\!\(\* GraphicsBox[ TagBox[RasterBox[CompressedData[" 1:eJztnd9r2+oZx8V2s8v9C7sX3u2uBL4cGAxnDHzhm2NWHwam8+kxGwZfHII6 KsRK5YtF0FJRiA4loWBvGI+6bo2pW9dM7mrD7LZaqtCIVmqkVmqDKL7Inley HcWRG8dWcJroC0kt6f3l9/n4ed5fbn6V+NM3yZ9hGPbDL+DXN9/+JXzp0rfZ 3/0SLn5/8Yc/fnfxwh9+ezFz4bsLl36T+Dnc/DX8/Ad+0Ou9QIECnWJZlqXr +ps3b+RAhwTdAp0DXbRsK50RQU/u7OxAl5qmuRvokKBboHOgiwLkfNH79+8/ fPiwbKuedkEXQUct21ZnQZqmffr0adn2PO2CLoKOWratzoIMw1i2Mb8OQUct 21ZnQQFvMyrgzRcFvM2ogDdfFPA2owLefFHA24wKePNFX+Dtn/7Js3ylxWIu RehGg46RNVmp5fBM5XB656lvAB1TAW/zaiBssBRFcVVp7yjeND80nTcaw0hR MzQFSdOMBhnJ1WRD6bf7Hlw5T30D6JhyeLOkOkNRDFuUB8s241cjlYmvdFRd N1GXLZk3PO+u3iEK/F6KbcFlt0A7ri9Gl7ThU2V3V1vPEERm/d98JpahUziG kzWf2fLS0L8NTN1Ui9l0VV+yFb8e6WyaHffWUnnLYxieyiClUnRbG/HWIIlc bVcsAGlsQ9TkVgzD4D48pRtihSSAMNHYbeUjkCDFlvqSdmKU7csdT5tMth7w NqsQb+rowi/eNjc3X716dXzeYiwP4jiuAAi5eZNrOSxRGNpalmQNAIs57q4g oZstmsAS6ydAlrcC3ubVifD29OnTy5cv12q1nZ2dmXlD8dTtm9y8iYUMnhsG Sk0WRcVADi1B51Pg1NYNNH0gcLrhJ1Jf1JG8WaZpWr6P6vQilWaq4tz5J1ol FimqPK20ReuaVuwivF29evVvXoIJyI+2rl+/PuHovjhfoBXXHTdvWhtmrxF7 fiDlMCxjx1OyYexqDQKyNWTEG3kqeLOkanw0yw4lWdHHgySWEIZC4/w8RQ4k Nh5yWhXObjjtFagQttL0vy67ug2+7pV3Id5WV1f/7qVr1645vK2trW1vb8/s 3yZ5I23eIsizaSVyGEDxBCeNnkKyfiEDAP7jWuR08GayISxMVXVrYMrCSjxZ V331cpY5HwDVFei5tKBaplSNYliU68FNgQmHmA567NnGeetCkjcwjDI9HpxU PL1y5cqTJ08OP5rG20zSNEU7FSvS03nTGQxLbvQmu9nsMcmw83nJ8sLQvFYv HU7Xe/UV50mUM61OMhStjpZXLHEjHKZkyN3hwDeFQqFwGJyTq/CBWqSSQ18a p3r6lLqsHrjclfrQzuIGZFmBiw4bBRecjtpJIbvNx9S6PN+CRwNMPj1MFkKC GngXeIvy1mq1Hj58OHFza2trwq35w9up0RfiqVSmnFDKVzujflbhVpgqQ6qB LoB5GOeJJTimZsodVYVRKdhhUEQs1B1bwusQZcc7S5clCdKUs6EQJYwJ4FHk TtdF1dSlIkOVJcu7LhQcw8KoNVaPgyRN0+YNi5Y7sq72ILRi6fJgal2eb8Gz AXu6qvbKWXgbPSgFJneq28/Nz5uiKDdu3ICgeefOndld35nnDYGii0U2a6OU FHTHvuA/OI5lYe6dhgvHjjZvjHAg80DkwbAC2E2vQ8KqeqDkDkTAMQNmExjZ kA7EQu+6HN4sdxrE2348hcIEAIpyN8Vdl3exXg0Ypu+Am2d8jKfPnj0jSfLH o7S5uXkOeRtJgkFTmBHMDtqqo4r1Zr0Kqjebgqg7vLkxGMnkwliyKPX4KPwz YUvhEG/lg0B612V1bLCH9pfLwEtW2jvIW3Nlgjd3Xd7FejVgmB7R6ydvY+cG AvDoKXr9+vW54m0gl8NYdEOQzAHMF5oQbbJVGH9JaScY2eFKFJqyw5jNW/OQ VfQm44x/uN4kiwd421MZsHeU6qnW3sDqFFleUKfVVUXuNttB84V6HA0VEWYo noZh0GVZege5rJXq9Lo8i/VsgN0PEswXsCL6WFm66qZ4ofEbzAgAtiCeuucL VTY9PnUQpcoOTZZcT4bGt+N1Z0aA4qkHb+CB0GgKpg+HHkCMA4fpsl5nJbpf 20ZHn1rXQGZHyzTj9ZAOGw8nk6OEzERgPBC7pxXr1QAneTkbHt3PivslLzpf AEf34sULH3nT7M16vwHxWUfF04Hptd5r2XcP47WgBpZHsZ51ea9Co/werYKo G3KzPb1YzwZMSXwi6yHz8Sa3+cj4sxKjuye1EarV+PX+EYUrdCRWU6Y+PsP7 WXUqHs8yTBa5Lc+5wGJalDdVVd+9ewe/d3Z21JHm4U2pEWhvqm1fyHwCwyLc yRCnkBhROaJoLU9EKueSN7VX51mGYbh6z2smsKgW5e3Ro0f379+/desWjOVu 3rzZbDbv3bs3B29dLoYR+X0LSxWSLgAU/RKN2w4vkuNlYKXNxWIpZ6chxaFz Sm0uE0ul7DQE10I7DmIljw8T2DsOWpeO2TfwRKm/xSWchzjXVgyxkrAviBSH cmpt0vawRCJFYJHz6d9OWIvytr29/dNPP92+fbtQKKytrbVarfl4a9C4x4a7 fQyJrnRlsZGCGMt17W1WjG9LcpsDLhrooAj4xUxbVtrgE/G8IpVwDF/vyppU Ayz5vlZAOVlR01qANEZuSa0MDmT2FcPeii10DU1Em/98v5RxUioNLoUKD3jz Xz6M38Ct3b17d3V19cGDB8AbvH779i0E2WPyNnHAw1BkRa6RWIx3rpVaDiPY Lec4HJJM4ijkof3Vin3QV6kQOPnfCokGf2w+z6ITSzj9LxLwE4dlShLykTRh +y65AqTm8iA2h5L+9c/7KQHFcxpPT1gqm96fd8/H2+PHj58/fw6wSZLU7/fX bb18+fJYvLXZCAzYxtUbXRbDEq0aiWdKzh3N3tD/3z5vCJshb87BcqUWwclO CbDM2YfoQOx67VEGRmtDcjSxLxm78pA3qQRBk3WSwq/14vf7KRUH5ll4E9iV 4HzvzDLRGkw6zRTRSadlzk+lEgTKjDNfsAMclilpXQiaeAFNJmXgEadbisu/ efK2hbIkWmg6YPAxcJlbHIERNMoiVSB+5mTIiBNogmq0wauxbURVl0sQ9AOY HuNkCbpAbuQhnh45frPEcjadjoaSXmtogaZoMLBA9sR3ueshUo3FXeshNghG LZ8Y3omQXW13dDzpAG/kmDeClt1ZYnnR2NX6pdEyC842JCizlEM32JYCM4tR fYmKZBhSJTZuABaZYfy233WB5tByeXMsqciyrBxcrTA0RTvm0ogxeXJJU5Qp 781QDlY3y5mn4PuAvmiJ3z/9uhTw5ouC79fPqIA3XxTwNqMC3nxRwNuMCnjz RQFvMyrgzRcFvM2ogDdfFPA2owLefJFpmsH/F32koIugo5Ztq7Mg6MmPHz8u 256nXdBF0FHLttVZ0OfPnz/aCrycp5zPIwg6atm2OiOCnty1/5CKEeiQnD+7 E8AWKFCgc6j/A6XFfQc= "], {{0, 47}, {208, 0}}, {0, 255}, ColorFunction->RGBColor], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable->False], DefaultBaseStyle->"ImageGraphics", ImageSize->208, ImageSizeRaw->{208, 47}, PlotRange->{{0, 208}, {0, 47}}]\)

获取 Flickr 用户相册的编码 (ID).

In[3]:=
Click for copyable input
albumIDs = ServiceExecute["Flickr", "UserAlbums", "User" -> username];

根据 ID 构建相册链接.

In[4]:=
Click for copyable input
listOfAlbums = Normal@albumIDs[All, "ID"];

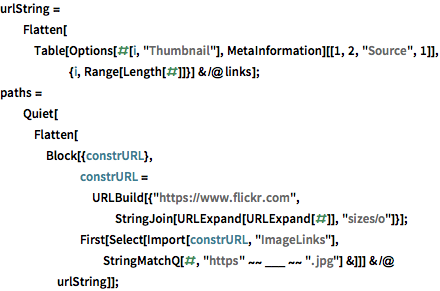

构建到相册中所有图像的链接并导入 Exif 元数据.

In[5]:=
Click for copyable input
links = ServiceExecute["Flickr", "AlbumImages", "AlbumID" -> ToString[#]] & /@ listOfAlbums;
显示完整的 Wolfram 语言输入
In[6]:=
Click for copyable input
urlString = Flatten[Table[ Options[#[i, "Thumbnail"], MetaInformation][[1, 2, "Source", 1]], {i, Range[Length[#]]}] & /@ links]; paths = Quiet[ Flatten[Block[{constrURL}, constrURL = URLBuild[{"https://www.flickr.com", StringJoin[URLExpand[URLExpand[#]], "sizes/o"]}]; First[ Select[Import[constrURL, "ImageLinks"], StringMatchQ[#, "https" ~~ ___ ~~ ".jpg"] &]]] & /@ urlString]];
In[7]:=
Click for copyable input
exif = Quiet[Import[#, "Exif"] & /@ paths]; exif = Select[exif, MatchQ[#, _Association] &];

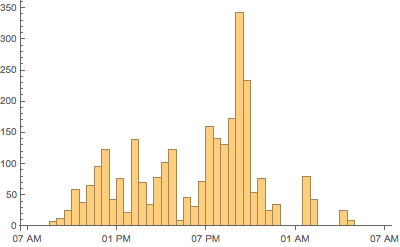

可视化一天中照片的拍摄时间分布.

显示完整的 Wolfram 语言输入
In[8]:=
Click for copyable input
times = TimeObject /@ DeleteMissing[Lookup[exif, "DateTime"]]; times = If[# < TimeObject[{7, 0}], DateObject[Tomorrow, #], DateObject[Today, #]] & /@ times;
In[9]:=
Click for copyable input
DateHistogram[times, {DateObject[Today, TimeObject[{7, 0}]], DateObject[Tomorrow, TimeObject[{7, 0}] - Quantity[1, "Second"]], Quantity[.5, "Hours"]}, "Count", DateTicksFormat -> {"Hour12", " ", "AMPM"}, ImageSize -> 400]
Out[9]=

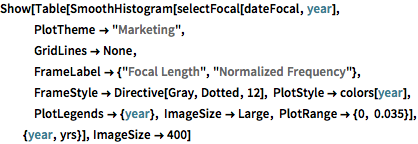

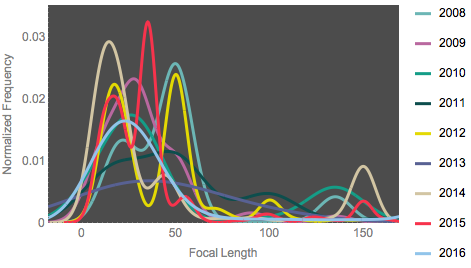

图示归一化的焦距使用频率随时间变化的情况.

In[10]:=
Click for copyable input
Show[Table[ SmoothHistogram[selectFocal[dateFocal, year], PlotTheme -> "Marketing", GridLines -> None, FrameLabel -> {"Focal Length", "Normalized Frequency"}, FrameStyle -> Directive[Gray, Dotted, 12], PlotStyle -> colors[year], PlotLegends -> {year}, ImageSize -> Large, PlotRange -> {0, 0.035}], {year, yrs}], ImageSize -> 400]
Out[11]=

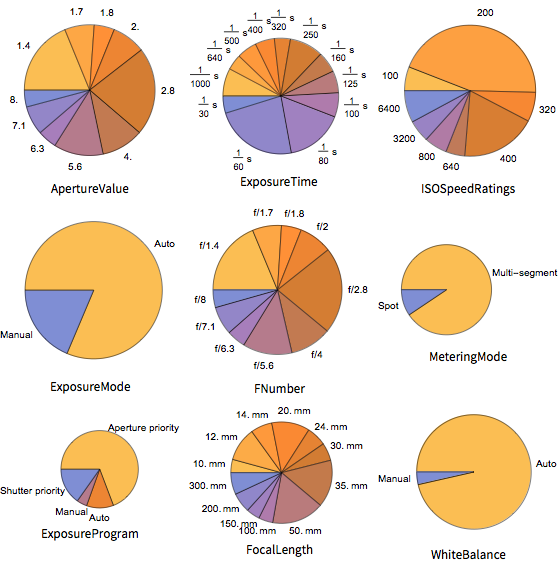

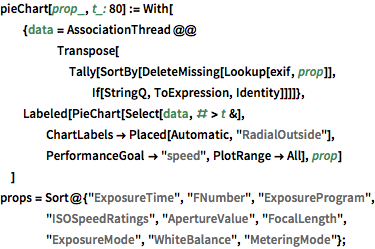

对不同的 Exif 标记作一个图形概括.

显示完整的 Wolfram 语言输入
In[12]:=
Click for copyable input
pieChart[prop_, t_: 80] := With[ {data = AssociationThread @@ Transpose[ Tally[SortBy[DeleteMissing[Lookup[exif, prop]], If[StringQ, ToExpression, Identity]]]]}, Labeled[ PieChart[Select[data, # > t &], ChartLabels -> Placed[Automatic, "RadialOutside"], PerformanceGoal -> "speed", PlotRange -> All], prop] ] props = Sort@{"ExposureTime", "FNumber", "ExposureProgram", "ISOSpeedRatings", "ApertureValue", "FocalLength", "ExposureMode", "WhiteBalance", "MeteringMode"};
In[13]:=
Click for copyable input
Multicolumn[pieChart /@ props]
Out[13]=

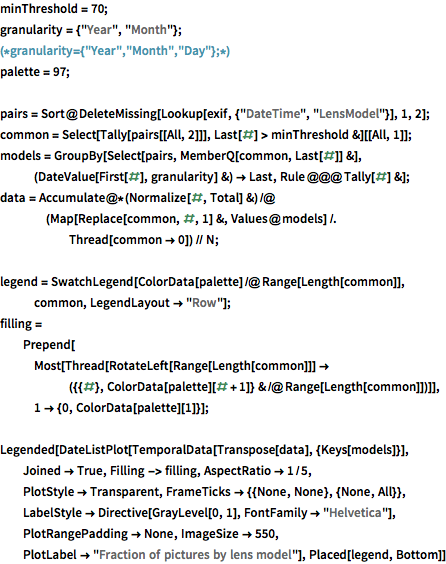

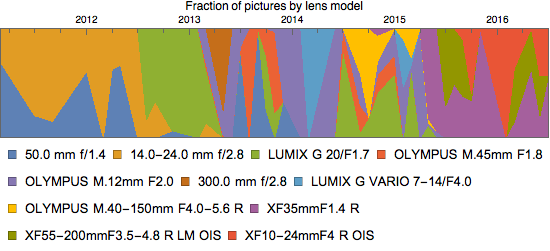

在这幅更加精心制作的图里,你可以看到镜头的使用情况如何随着时间而变化.

显示完整的 Wolfram 语言输入
In[14]:=
Click for copyable input
minThreshold = 70; granularity = {"Year", "Month"}; (*granularity={"Year","Month","Day"};*) palette = 97; pairs = Sort@ DeleteMissing[Lookup[exif, {"DateTime", "LensModel"}], 1, 2]; common = Select[Tally[pairs[[All, 2]]], Last[#] > minThreshold &][[ All, 1]]; models = GroupBy[ Select[pairs, MemberQ[common, Last[#]] &], (DateValue[First[#], granularity] &) -> Last, Rule @@@ Tally[#] &]; data = Accumulate@*(Normalize[#, Total] &) /@ (Map[ Replace[common, #, 1] &, Values@models] /. Thread[common -> 0]) // N; legend = SwatchLegend[ColorData[palette] /@ Range[Length[common]], common, LegendLayout -> "Row"]; filling = Prepend[Most[ Thread[RotateLeft[ Range[Length[common]]] -> ({{#}, ColorData[palette][# + 1]} & /@ Range[Length[common]])]], 1 -> {0, ColorData[palette][1]}]; Legended[DateListPlot[TemporalData[Transpose[data], {Keys[models]}], Joined -> True, Filling -> filling, AspectRatio -> 1/5, PlotStyle -> Transparent, FrameTicks -> {{None, None}, {None, All}}, LabelStyle -> Directive[GrayLevel[0, 1], FontFamily -> "Helvetica"], PlotRangePadding -> None, ImageSize -> 550, PlotLabel -> "Fraction of pictures by lens model"], Placed[legend, Bottom]]
Out[14]=
