美国各郡间的连通性

构建美国各郡间的连通图.

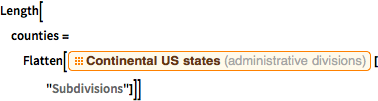

提取美国大陆相连的州的所有郡的列表.

In[1]:=

Length[counties = Flatten[EntityClass["AdministrativeDivision", "ContinentalUSStates"]["Subdivisions"]]]

Out[1]=

加上不属于 48 个相连本土州的哥伦比亚特区.

In[2]:=

AppendTo[counties, Entity["AdministrativeDivision", {"DistrictOfColumbia", "DistrictOfColumbia", "UnitedStates"}]];

计算与每个郡边界相连的郡的列表.

In[3]:=

bordering = EntityValue[counties, "BorderingCounties"];

除去无法获取边界信息的郡.

In[4]:=

Length[missingpos = Position[bordering, _Missing]]

Out[4]=

In[5]:=

counties = Delete[counties, missingpos]; bordering = Delete[bordering, missingpos];

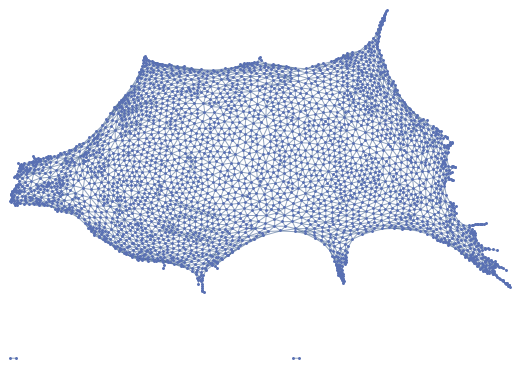

构建美国各郡的连通图.

In[6]:=

Length[edges = DeleteDuplicates[ Sort /@ Flatten[ MapThread[Thread[UndirectedEdge[##]] &, {counties, bordering}]]]]

Out[6]=

In[7]:=

Graph[counties, edges]

Out[7]=

为构建更常见的嵌入图，下载所有郡的中心位置.

In[8]:=

pos = GeoPosition[EntityValue[counties, "Position"]]

Out[8]=

使用以下地图投影.

In[9]:=

proj = {"LambertAzimuthal", "Centering" -> Entity["City", {"Topeka", "Kansas", "UnitedStates"}]};

In[10]:=

projpos = First@GeoGridPosition[pos, proj];

现在有以下嵌入图.

In[11]:=

graph = Graph[counties, edges, VertexCoordinates -> projpos]

Out[11]=

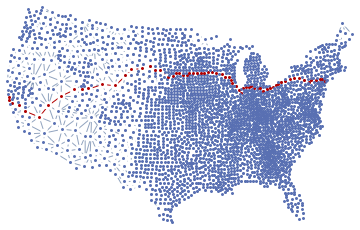

从旧金山郡到曼哈顿，你需要访问最少 67 个郡，包括起点和终点.

In[12]:=

Length[path = FindShortestPath[graph, Entity[ "AdministrativeDivision", {"SanFranciscoCounty", "California", "UnitedStates"}], Entity[ "AdministrativeDivision", {"NewYorkCounty", "NewYork", "UnitedStates"}]]]

Out[12]=

In[13]:=

HighlightGraph[graph, PathGraph[path]]

Out[13]=
