Aircraft Catapult: Model Launch Mechanism

An aircraft carrier has a hydraulic aircraft catapult to accelerate aircraft to a high speed in a short distance. The hydraulic catapult and mechanical components of the aircraft and carrier interact with logical control systems.

Model with Real-World Topology

Connections between model components, such as the carrier, catapult, and control logic, mirror the real-world interactions between the corresponding objects and subsystems.

Mechanics and Custom Components

Model the aircraft with the built-in mechanics library and custom-built components.

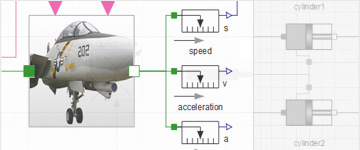

Acceleration, velocity, and position of the aircraft during launch




Logical and State Graph Libraries

Combine logical and state graph components to control the launch sequence of the catapult.
