高忠実度の描画: Wolfram言語 11の新機能

‹›

高忠実度の描画

グラフとネットワークの高忠実度の描画．

In[1]:=

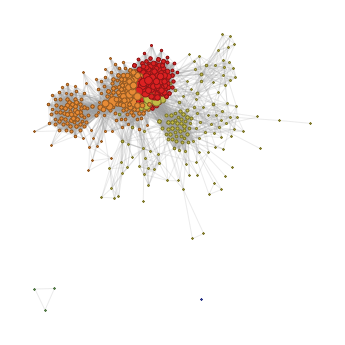

SocialMediaData["Facebook", "FriendNetwork"]

Out[1]=

In[2]:=

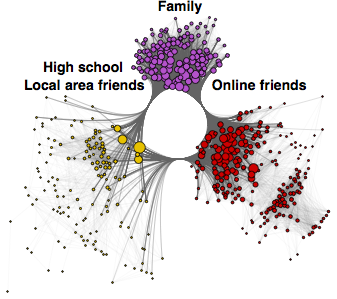

CommunityGraphPlot[SocialMediaData["Facebook", "FriendNetwork"],
 CommunityLabels -> {"Online friends",
   "High school\n Local area friends", "Family"}]

Out[2]=

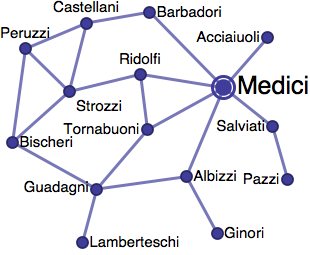

フィレンツェの名門．

完全なWolfram言語入力を表示する

In[3]:=

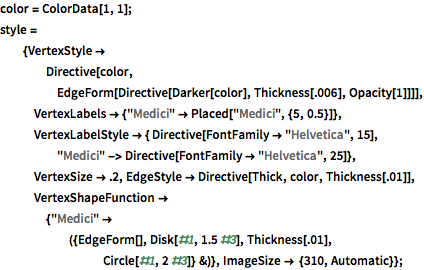

color = ColorData[1, 1];
style = {VertexStyle ->
    Directive[color,
     EdgeForm[Directive[Darker[color], Thickness[.006], Opacity[1]]]],
    VertexLabels -> {"Medici" -> Placed["Medici", {5, 0.5}]},
   VertexLabelStyle -> { Directive[FontFamily -> "Helvetica", 15],
     "Medici" -> Directive[FontFamily -> "Helvetica", 25]},
   VertexSize -> .2,
   EdgeStyle -> Directive[Thick, color, Thickness[.01]],
   VertexShapeFunction -> {"Medici" -> ({EdgeForm[], Disk[#1, 1.5 #3],
          Thickness[.01], Circle[#1, 2 #3]} &)},
   ImageSize -> {310, Automatic}};

In[4]:=

Graph[ExampleData[{"NetworkGraph", "FlorentineFamilies"}], style]

Out[4]=
