Modele un colector solar

El sistema de generación de energía solar Ivanpah utiliza una disposición circular de espejos para redirigir los rayos del Sol hacia la torre central.

muestre la entrada completa de Wolfram Languageoculte la entrada

In[1]:=

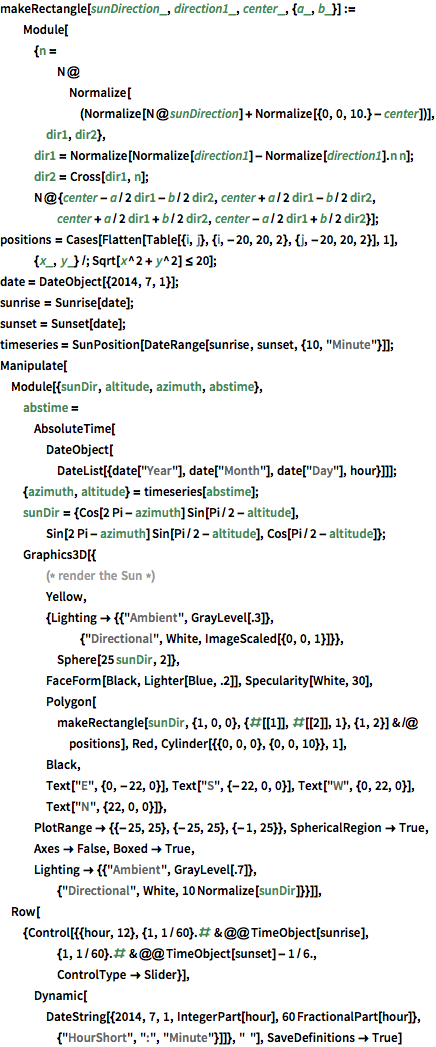

X makeRectangle[sunDirection_, direction1_, center_, {a_, b_}] := Module[{n = N@Normalize[(Normalize[N@sunDirection] + Normalize[{0, 0, 10.} - center])], dir1, dir2}, dir1 = Normalize[Normalize[direction1] - Normalize[direction1].n n]; dir2 = Cross[dir1, n]; N@{center - a/2 dir1 - b/2 dir2, center + a/2 dir1 - b/2 dir2, center + a/2 dir1 + b/2 dir2, center - a/2 dir1 + b/2 dir2}]; positions = Cases[Flatten[Table[{i, j}, {i, -20, 20, 2}, {j, -20, 20, 2}], 1], {x_, y_} /; Sqrt[x^2 + y^2] <= 20]; date = DateObject[{2014, 7, 1}]; sunrise = Sunrise[date]; sunset = Sunset[date]; timeseries = SunPosition[DateRange[sunrise, sunset, {10, "Minute"}]]; Manipulate[ Module[{sunDir, altitude, azimuth, abstime}, abstime = AbsoluteTime[ DateObject[ DateList[{date["Year"], date["Month"], date["Day"], hour}]]]; {azimuth, altitude} = timeseries[abstime]; sunDir = {Cos[2 Pi - azimuth] Sin[Pi/2 - altitude], Sin[2 Pi - azimuth] Sin[Pi/2 - altitude], Cos[Pi/2 - altitude]}; Graphics3D[{ (* render the Sun *) Yellow, {Lighting -> {{"Ambient", GrayLevel[.3]}, {"Directional", White, ImageScaled[{0, 0, 1}]}}, Sphere[25 sunDir, 2]}, FaceForm[Black, Lighter[Blue, .2]], Specularity[White, 30], Polygon[makeRectangle[ sunDir, {1, 0, 0}, {#[[1]], #[[2]], 1}, {1, 2}] & /@ positions], Red, Cylinder[{{0, 0, 0}, {0, 0, 10}}, 1], Black, Text["E", {0, -22, 0}], Text["S", {-22, 0, 0}], Text["W", {0, 22, 0}], Text["N", {22, 0, 0}]}, PlotRange -> {{-25, 25}, {-25, 25}, {-1, 25}}, SphericalRegion -> True, Axes -> False, Boxed -> True, Lighting -> {{"Ambient", GrayLevel[.7]}, {"Directional", White, 10 Normalize[sunDir]}}]], Row[{Control[{{hour, 12}, {1, 1/60}.# & @@ TimeObject[sunrise], {1, 1/60}.# & @@ TimeObject[sunset] - 1/6., ControlType -> Slider}], Dynamic[DateString[{2014, 7, 1, IntegerPart[hour], 60 FractionalPart[hour]}, {"HourShort", ":", "Minute"}]]}, " "], SaveDefinitions -> True]

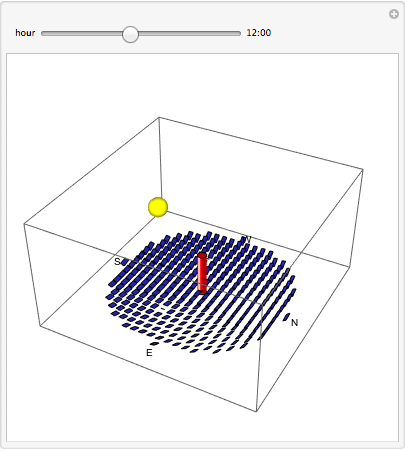

Reproducir Detener
