Plote o trajeto da maratona de Tóquio

Visualize o percurso da Maratona de Tóquio e a mudança de elevação ao decorrer do trajeto.

mostre o input completo de Wolfram Language

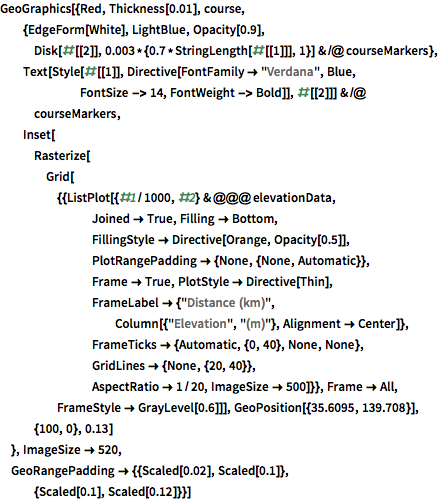

In[4]:=

GeoGraphics[{Red, Thickness[0.01], course,
  {EdgeForm[White], LightBlue, Opacity[0.9],
   Disk[#[[2]], 0.003*{0.7*StringLength[#[[1]]], 1}] & /@
    courseMarkers},
  Text[Style[#[[1]],
      Directive[FontFamily -> "Verdana", Blue, FontSize -> 14,
       FontWeight -> Bold]], #[[2]]] & /@ courseMarkers,
  Inset[Rasterize[
    Grid[{{ListPlot[{#1/1000, #2} & @@@ elevationData, Joined -> True,
         Filling -> Bottom,
        FillingStyle -> Directive[Orange, Opacity[0.5]],
        PlotRangePadding -> {None, {None, Automatic}}, Frame -> True,
        PlotStyle -> Directive[Thin],
        FrameLabel -> {"Distance (km)",
          Column[{"Elevation", "(m)"}, Alignment -> Center]},
        FrameTicks -> {Automatic, {0, 40}, None, None},
        GridLines -> {None, {20, 40}},
        AspectRatio -> 1/20, ImageSize -> 500]}}, Frame -> All,
     FrameStyle -> GrayLevel[0.6]]],
   GeoPosition[{35.6095, 139.708}], {100, 0}, 0.13]
  }, ImageSize -> 520,
 GeoRangePadding -> {{Scaled[0.02], Scaled[0.1]}, {Scaled[0.1],
    Scaled[0.12]}}]

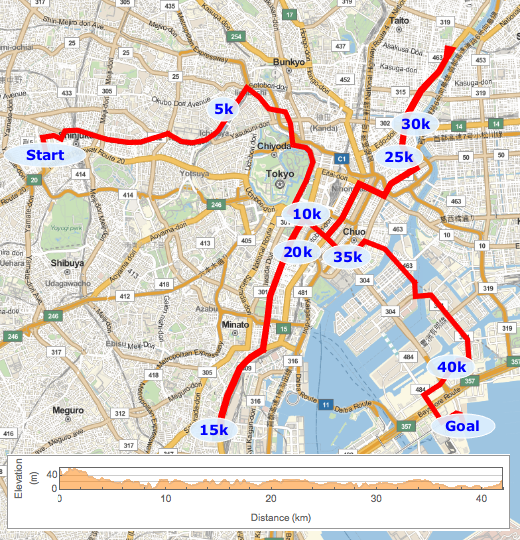

Out[4]=
