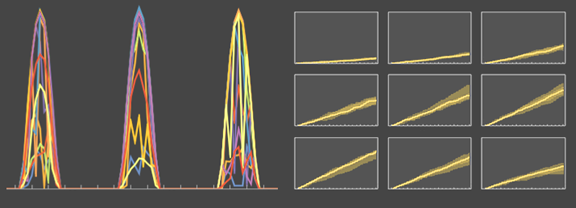

The library offers a comprehensive suite of components designed for planning residential and commercial PV systems. It enables precise estimation of overall energy yield for any geographic location within a specified simulation period. The library also accounts for temperature-dependent effects, accurately modeling them in accordance with data sheet specifications to ensure reliable performance predictions.
System Modeler Modelica Library Store
PhotoVoltaics
To run this example, you'll need
The latest versions of System Modeler and Mathematica.
Please make a selection:
Get afree trial Continue
with download
Features

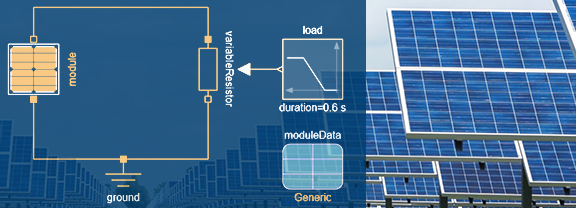

- Hierarchical and acausal modeling of photovoltaic systems
- Parameterize PV components using data sheet specifications
- Access irradiance data for any geographic location
- Accurately model temperature-dependent behavior of components
- Seamlessly integrate with electrical, thermal or other domains from the Modelica Standard Library
Learning Resources
Details
Producer
Version
2
Platforms
All Platforms
Updated
March 2024
Requirements
None
Size
<1MB
Language
English
Library Dependency
Modelica Standard Library 4.0.0
