Multi-view Reconstruction

A 3D object can be reconstructed from multiple 2D views. ImageDisplacements is used to determine the parallax from one view to the next. The larger the parallax shift, the closer the object behind the corresponding pixel. With this depth information, you can extrude the vertices of an object mesh obtained through ImageMesh and TriangulateMesh. The result is displayed via texture mapping on the 3D mesh object.

In[1]:=
Click for copyable input

Obtain an object mask of the central image.

In[2]:=
Click for copyable input
mask = Erosion[Binarize[imgs[[2]], 0], 1];

Determine the parallax in the left and right images with respect to the center image.

In[3]:=
Click for copyable input
parallaxL = First@ImageDisplacements[imgs[[{2, 1}]]];
In[4]:=
Click for copyable input
parallaxR = First@ImageDisplacements[imgs[[{2, 3}]]];

Combine these displacements in a total parallax.

In[5]:=
Click for copyable input
parallax = parallaxL - parallaxR;

In the given setting, the x component of the parallax is roughly proportional to the depth of the respective pixel source.

In[6]:=
Click for copyable input

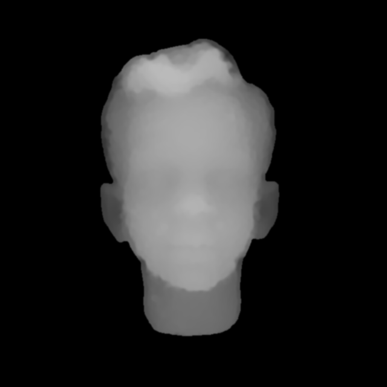

depth = Blur@ Opening[ImageMultiply[ImageAdjust@Image[parallax[[All, All, 1]]], mask], DiskMatrix[4]]
Out[6]=

Construct a depth function.

In[7]:=
Click for copyable input
depthFunction = ListInterpolation[Transpose@Reverse@ImageData[depth]];

Obtain an object mesh with a refinement that depends on the object's saliency.

In[8]:=
Click for copyable input
resolution = ImageAdjust@ImageSaliencyFilter[imgs[[2]]];
In[9]:=
Click for copyable input
resolutionFunction = ListInterpolation[Transpose@Reverse@ImageData@resolution];
In[10]:=
Click for copyable input

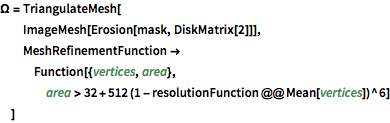

\[CapitalOmega] = TriangulateMesh[ ImageMesh[Erosion[mask, DiskMatrix[2]]], MeshRefinementFunction -> Function[{vertices, area}, area > 32 + 512 (1 - resolutionFunction @@ Mean[vertices])^6] ]
Out[10]=

Extrude the object mesh with the depth function.

In[11]:=
Click for copyable input

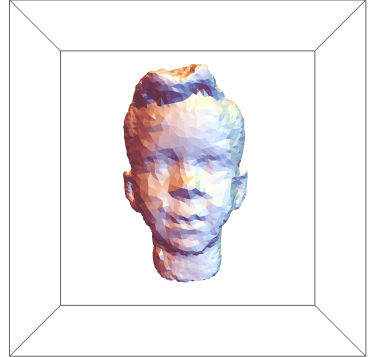

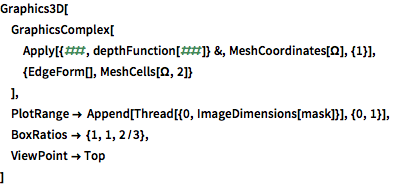

Graphics3D[ GraphicsComplex[ Apply[{##, depthFunction[##]} &, MeshCoordinates[\[CapitalOmega]], {1}], {EdgeForm[], MeshCells[\[CapitalOmega], 2]} ], PlotRange -> Append[Thread[{0, ImageDimensions[mask]}], {0, 1}], BoxRatios -> {1, 1, 2/3}, ViewPoint -> Top ]
Out[11]=

Extract the object texture from the central image.

In[12]:=
Click for copyable input

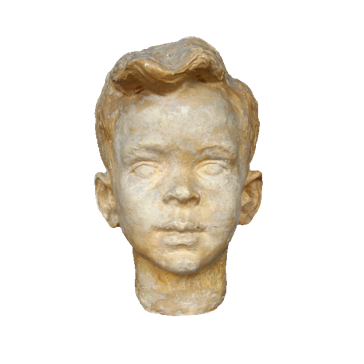

texture = SetAlphaChannel[imgs[[2]], mask]
Out[12]=

Map the texture onto the 3D object.

In[13]:=
Click for copyable input

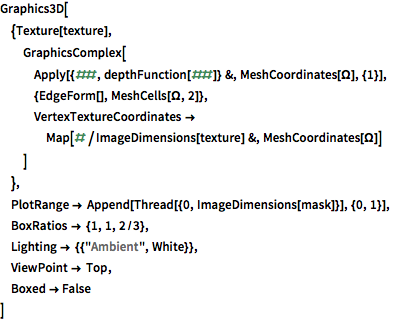

Graphics3D[ {Texture[texture], GraphicsComplex[ Apply[{##, depthFunction[##]} &, MeshCoordinates[\[CapitalOmega]], {1}], {EdgeForm[], MeshCells[\[CapitalOmega], 2]}, VertexTextureCoordinates -> Map[#/ImageDimensions[texture] &, MeshCoordinates[\[CapitalOmega]]] ] }, PlotRange -> Append[Thread[{0, ImageDimensions[mask]}], {0, 1}], BoxRatios -> {1, 1, 2/3}, Lighting -> {{"Ambient", White}}, ViewPoint -> Top, Boxed -> False ]
Play Animation
Stop Animation
