Exoplanets

Use callouts to identify two different classes of planets in a plot.

In[1]:=

sedata = DeleteMissing[ ExoplanetData[ EntityClass["Exoplanet", "SuperEarth"], {"Radius", "Gravity"}], 1, 1]; hjdata = DeleteMissing[ ExoplanetData[ EntityClass["Exoplanet", "HotJupiter"], {"Radius", "Gravity"}], 1, 1];

In[2]:=

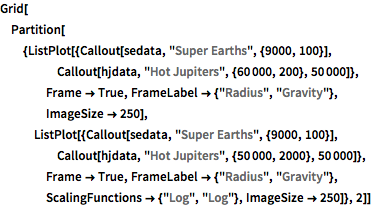

Grid[Partition[{ListPlot[{Callout[sedata, "Super Earths", {9000, 100}], Callout[hjdata, "Hot Jupiters", {60000, 200}, 50000]}, Frame -> True, FrameLabel -> {"Radius", "Gravity"}, ImageSize -> 250], ListPlot[{Callout[sedata, "Super Earths", {9000, 100}], Callout[hjdata, "Hot Jupiters", {50000, 2000}, 50000]}, Frame -> True, FrameLabel -> {"Radius", "Gravity"}, ScalingFunctions -> {"Log", "Log"}, ImageSize -> 250]}, 2]]

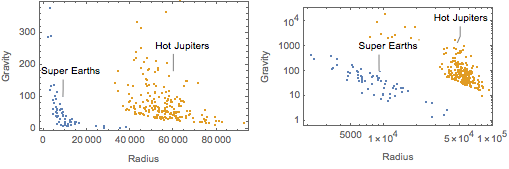

Out[2]=
