立体可视化

可视化特征函数

定义一个三维拉普拉斯算子.

In[1]:=
Click for copyable input
\[ScriptCapitalL] = -Laplacian[u[x, y, z], {x, y, z}];

设定齐次狄利克雷边界条件.

In[2]:=
Click for copyable input
\[ScriptCapitalB] = DirichletCondition[u[x, y, z] == 0, True];

找出一个球内的最小特征值和特征函数.

In[3]:=
Click for copyable input
\[CapitalOmega] = Ball[{0, 0, 0}, 2]; {vals, funs} = DEigensystem[{\[ScriptCapitalL], \[ScriptCapitalB]}, u[x, y, z], {x, y, z} \[Element] \[CapitalOmega], 2];
In[4]:=
Click for copyable input

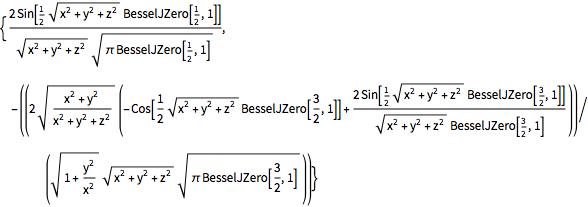

funs
Out[4]=

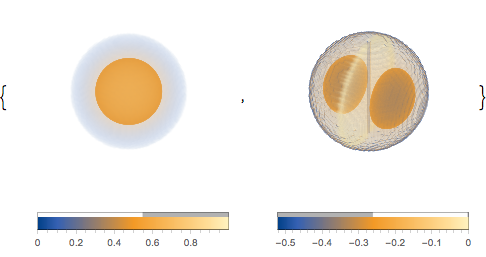

用三维密度图绘制每一本征函数.

In[5]:=
Click for copyable input
Table[DensityPlot3D[ Evaluate[N[f]], {x, y, z} \[Element] \[CapitalOmega], PlotTheme -> "NoAxes", PlotLegends -> Placed[Automatic, Below]], {f, funs}]
Out[5]=

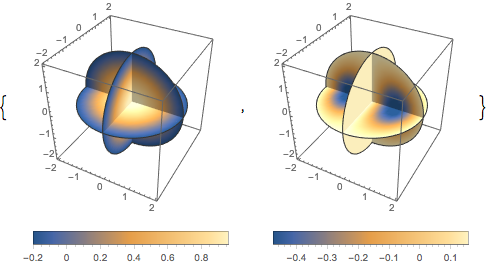

用坐标平面上绘制的密度.

In[6]:=
Click for copyable input
Table[SliceDensityPlot3D[ Evaluate[N[f]], {x, y, z} \[Element] \[CapitalOmega], PlotLegends -> Placed[Automatic, Below]], {f, funs}]
Out[6]=
