Mathematica 10の新機能 › 次元変数 ›

モリエ線図を構築する

圧力対エントロピーのモリエ線図を構築する．

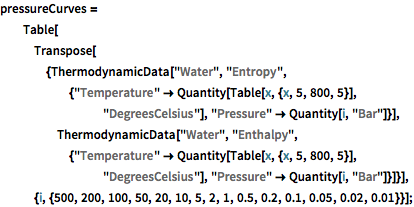

In[1]:=
Click for copyable input
X

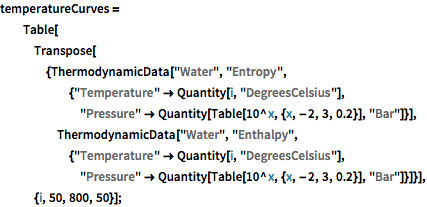

In[2]:=
Click for copyable input
X
In[3]:=
Click for copyable input
X

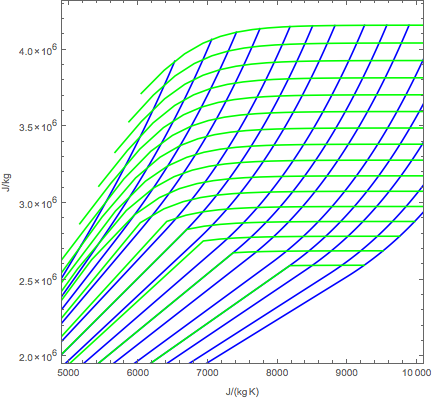

Out[3]=
