Examine Variations in Earth's Gravitational Field

The gravitational field on the surface of the Earth varies due to inhomogeneities in the matter density and the non-spherical shape of the Earth.

This is the standard average value of the field on the surface of the Earth.

In[1]:=
Click for copyable input
g = UnitConvert[Quantity[1., "StandardAccelerationOfGravity"], "SIBase"]
Out[1]=

Compute the difference between an array of values for the gravitational field over the US and the standard average value.

In[2]:=
Click for copyable input
data = GeogravityModelData[Entity["Country", "UnitedStates"], "DownComponent"] - g
Out[2]=

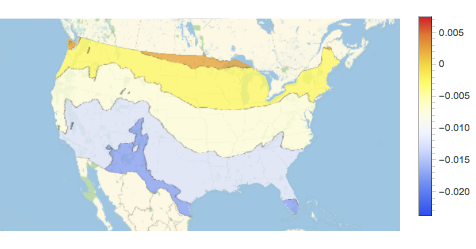

Plot the data on a map of the US.

show complete Wolfram Language input
In[3]:=
Click for copyable input

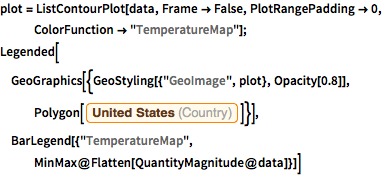

plot = ListContourPlot[data, Frame -> False, PlotRangePadding -> 0, ColorFunction -> "TemperatureMap"]; Legended[GeoGraphics[{GeoStyling[{"GeoImage", plot}, Opacity[0.8]], Polygon[Entity["Country", "UnitedStates"]]}], BarLegend[{"TemperatureMap", MinMax@Flatten[QuantityMagnitude@data]}]]
Out[3]=
