Transform Anatomical Structures into Sculpture

With the availability of highresolution 3D models of human anatomical structures, the powerful graphics and regionprocessing functionality in Version 11 can be used to programmatically construct anatomy-based modern sculpture.

The art of Antony Gormley can serve as an inspiration (http://www.antonygormley.com/sculpture/chronology).

show complete Wolfram Language input
In[1]:=
Click for copyable input
WikipediaData["Antony Gormley", "ImageList"] // Select[#, Length[Union[#]]/Length[#] &[ImageData[#][[1, 1]]] > 0.8 &] &
Out[1]=

Load a faithful representation of the human body.

In[2]:=
Click for copyable input
human = AnatomyData[Entity["AnatomicalStructure", "Skin"], "MeshRegion"]
Out[2]=

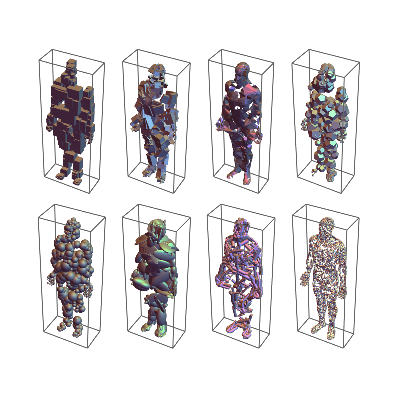

Using the regions functionality, it is straightforward to build a large variety of sculptures.

show complete Wolfram Language input
In[3]:=
Click for copyable input
pts = MeshCoordinates[human]; nf = Nearest[pts]; color := Directive[GrayLevel[RandomReal[{0.5, 0.7}]], Specularity[RandomColor[], RandomInteger[{10, 20}]]]
In[4]:=
Click for copyable input

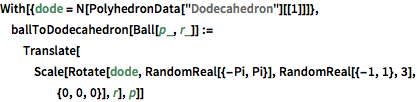

With[{dode = N[PolyhedronData["Dodecahedron"][[1]]]}, ballToDodecahedron[Ball[p_, r_]] := Translate[ Scale[Rotate[dode, RandomReal[{-Pi, Pi}], RandomReal[{-1, 1}, 3], {0, 0, 0}], r], p]]
In[5]:=
Click for copyable input

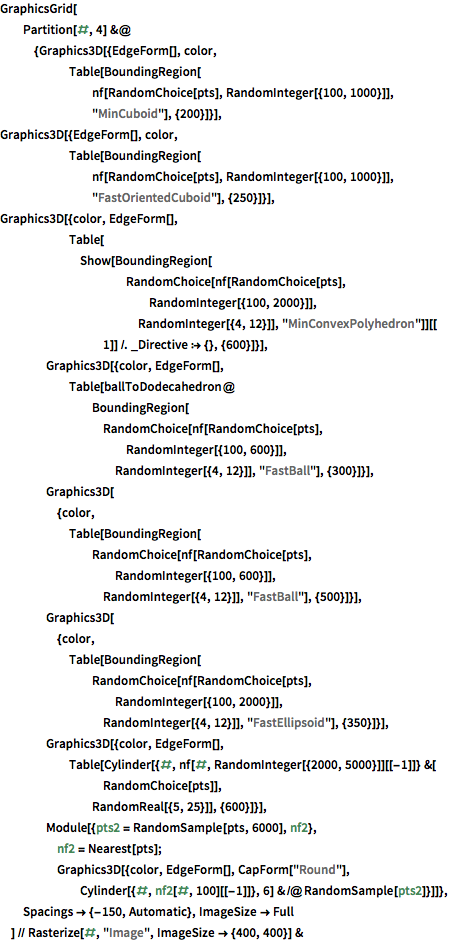

GraphicsGrid[ Partition[#, 4] &@{Graphics3D[{EdgeForm[], color, Table[BoundingRegion[ nf[RandomChoice[pts], RandomInteger[{100, 1000}]], "MinCuboid"], {200}]}], Graphics3D[{EdgeForm[], color, Table[BoundingRegion[ nf[RandomChoice[pts], RandomInteger[{100, 1000}]], "FastOrientedCuboid"], {250}]}], Graphics3D[{color, EdgeForm[], Table[Show[ BoundingRegion[ RandomChoice[ nf[RandomChoice[pts], RandomInteger[{100, 2000}]], RandomInteger[{4, 12}]], "MinConvexPolyhedron"]][[ 1]] /. _Directive :> {}, {600}]}], Graphics3D[{color, EdgeForm[], Table[ballToDodecahedron@ BoundingRegion[ RandomChoice[nf[RandomChoice[pts], RandomInteger[{100, 600}]], RandomInteger[{4, 12}]], "FastBall"], {300}]}], Graphics3D[{color, Table[BoundingRegion[ RandomChoice[ nf[RandomChoice[pts], RandomInteger[{100, 600}]], RandomInteger[{4, 12}]], "FastBall"], {500}]}], Graphics3D[{color, Table[ BoundingRegion[ RandomChoice[nf[RandomChoice[pts], RandomInteger[{100, 2000}]], RandomInteger[{4, 12}]], "FastEllipsoid"], {350}]}], Graphics3D[{color, EdgeForm[], Table[Cylinder[{#, nf[#, RandomInteger[{2000, 5000}]][[-1]]} &[ RandomChoice[pts]], RandomReal[{5, 25}]], {600}]}], Module[{pts2 = RandomSample[pts, 6000], nf2}, nf2 = Nearest[pts]; Graphics3D[{color, EdgeForm[], CapForm["Round"], Cylinder[{#, nf2[#, 100][[-1]]}, 6] & /@ RandomSample[pts2]}]]}, Spacings -> {-150, Automatic}, ImageSize -> Full ] // Rasterize[#, "Image", ImageSize -> {400, 400}] &
Out[5]=

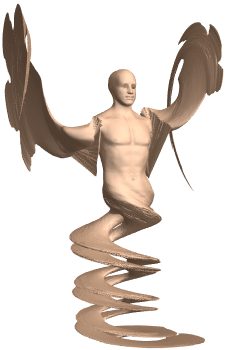

More classical-appearing art can be generated by applying a rotation and stretching transform to the legs and arms to make angellike sculptures.

show complete Wolfram Language input
In[6]:=
Click for copyable input

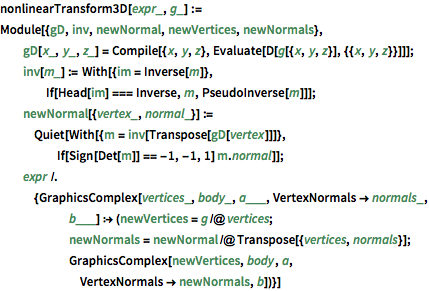

nonlinearTransform3D[expr_, g_] := Module[{gD, inv, newNormal, newVertices, newNormals}, gD[x_, y_, z_] = Compile[{x, y, z}, Evaluate[D[g[{x, y, z}], {{x, y, z}}]]]; inv[m_] := With[{im = Inverse[m]}, If[Head[im] === Inverse, m, PseudoInverse[m]]]; newNormal[{vertex_, normal_}] := Quiet[With[{m = inv[Transpose[gD[vertex]]]}, If[Sign[Det[m]] == -1, -1, 1] m.normal]]; expr /. {GraphicsComplex[vertices_, body_, a___, VertexNormals -> normals_, b___] :> (newVertices = g /@ vertices; newNormals = newNormal /@ Transpose[{vertices, normals}]; GraphicsComplex[newVertices, body, a, VertexNormals -> newNormals, b])}]
In[7]:=
Click for copyable input

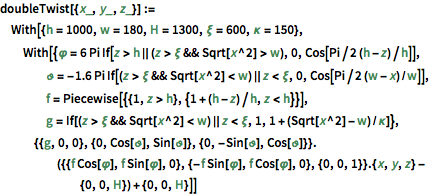

doubleTwist[{x_, y_, z_}] := With[{h = 1000, w = 180, H = 1300, \[Xi] = 600, \[Kappa] = 150}, With[{\[CurlyPhi] = 6 Pi If[z > h || (z > \[Xi] && Sqrt[x^2] > w), 0, Cos[Pi/2 (h - z)/h]], \[CurlyTheta] = -1.6 Pi If[(z > \[Xi] && Sqrt[x^2] < w) || z < \[Xi], 0, Cos[Pi/2 (w - x)/w]], f = Piecewise[{{1, z > h}, {1 + (h - z)/h, z < h}}], g = If[(z > \[Xi] && Sqrt[x^2] < w) || z < \[Xi], 1, 1 + (Sqrt[x^2] - w)/\[Kappa]]}, {{g, 0, 0}, {0, Cos[\[CurlyTheta]], Sin[\[CurlyTheta]]}, {0, -Sin[\[CurlyTheta]], Cos[\[CurlyTheta]]}}.({{f Cos[\[CurlyPhi]], f Sin[\[CurlyPhi]], 0}, {-f Sin[\[CurlyPhi]], f Cos[\[CurlyPhi]], 0}, {0, 0, 1}}.{x, y, z} - {0, 0, H}) + {0, 0, H}]]
In[8]:=
Click for copyable input
smoothHuman = Entity["AnatomicalStructure", "Skin"]["Graphics3D"];
In[9]:=
Click for copyable input
Show[nonlinearTransform3D[smoothHuman, doubleTwist], ViewPoint -> {-1, -2, 0}, Method -> {"ShrinkWrap" -> True}]
Out[9]=
