1日の推奨摂取量から栄養素を可視化する

Wolfram Knowledgebasesには37,000種類以上の"Food"実体および1,000項目以上の"FoodType"実体についての詳細な特性と栄養情報だけでなく，176項目の栄養素の1日の推奨摂取量も含まれている．この克明なデータ集合を使えば，事実上，どんな食事の栄養素含有量でも計算することができ，簡単なプロットを使って直感的に可視化することもできる．

In[1]:=

EntityValue["Nutrient", "EntityCount"]

Out[1]=

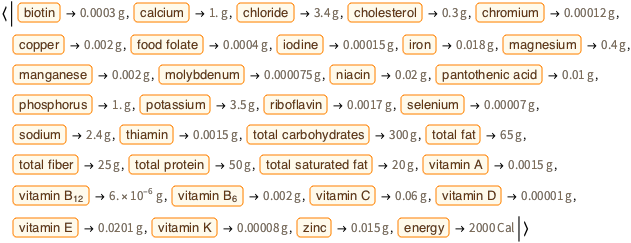

1日2000kcalのダイエットに基づいた栄養素の推奨摂取量のリストを取得する

In[2]:=

allDailyValues = Append[DeleteMissing[ EntityValue["Nutrient", "DailyValue", "EntityAssociation"]], Entity["Nutrient", "Energy"] -> Quantity[2000, ("LargeCalories")/("Days")]]*Quantity[1, "Days"]

Out[2]=

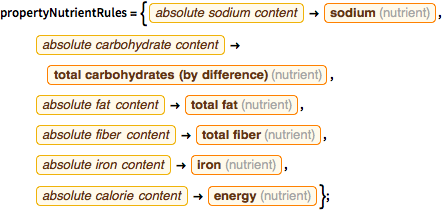

栄養素に食物特性をマップする．

In[3]:=

propertyNutrientRules = {EntityProperty["Food", "AbsoluteSodiumContent"] -> Entity["Nutrient", "Sodium"], EntityProperty["Food", "AbsoluteTotalCarbohydratesContent"] -> Entity["Nutrient", "TotalCarbohydrates"], EntityProperty["Food", "AbsoluteTotalFatContent"] -> Entity["Nutrient", "TotalFat"], EntityProperty["Food", "AbsoluteTotalFiberContent"] -> Entity["Nutrient", "TotalFiber"], EntityProperty["Food", "AbsoluteIronContent"] -> Entity["Nutrient", "Iron"], EntityProperty["Food", "AbsoluteTotalCaloriesContent"] -> Entity["Nutrient", "Energy"]};

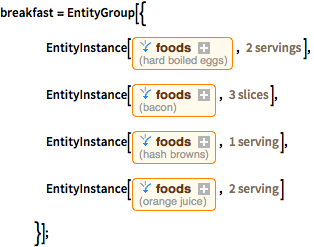

EntityGroupとEntityInstanceを使って典型的な朝食を符号化する．

In[4]:=

breakfast = EntityGroup[{ EntityInstance[Entity[ "Food", { EntityProperty["Food", "CookingMethod"] -> Entity[ "CookingMethod", "HardBoiled"], EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "Egg"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[2, "Servings"]], EntityInstance[Entity[ "Food", {EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "Bacon"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[3, "Slices"]], EntityInstance[Entity[ "Food", {EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "HashBrown"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[1, "Servings"]], EntityInstance[Entity[ "Food", {EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "OrangeJuice"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[2, "Servings"]] }];

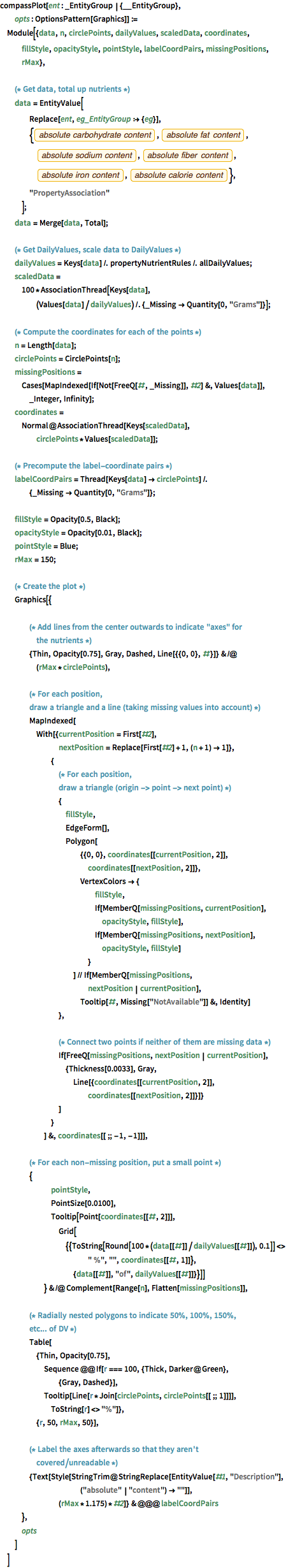

6つの主な栄養素について，1日の推奨摂取量の50%，100%（緑で表示），150%を示す放射状にネストした六角形で示す栄養バランスグラフを構築する．

In[5]:=

compassPlot[ent : _EntityGroup | {__EntityGroup}, opts : OptionsPattern[Graphics]] := Module[{data, n, circlePoints, dailyValues, scaledData, coordinates, fillStyle, opacityStyle, pointStyle, labelCoordPairs, missingPositions, rMax}, (* Get data, total up nutrients *) data = EntityValue[ Replace[ent, eg_EntityGroup :> {eg}], {EntityProperty["Food", "AbsoluteTotalCarbohydratesContent"], EntityProperty["Food", "AbsoluteTotalFatContent"], EntityProperty["Food", "AbsoluteSodiumContent"], EntityProperty["Food", "AbsoluteTotalFiberContent"], EntityProperty["Food", "AbsoluteIronContent"], EntityProperty["Food", "AbsoluteTotalCaloriesContent"]}, "PropertyAssociation" ]; data = Merge[data, Total]; (* Get DailyValues, scale data to DailyValues *) dailyValues = Keys[data] /. propertyNutrientRules /. allDailyValues; scaledData = 100*AssociationThread[ Keys[data], (Values[data]/dailyValues) /. {_Missing -> Quantity[0, "Grams"]}]; (* Compute the coordinates for each of the points *) n = Length[data]; circlePoints = CirclePoints[n]; missingPositions = Cases[MapIndexed[If[Not[FreeQ[#, _Missing]], #2] &, Values[data]], _Integer, Infinity]; coordinates = Normal@AssociationThread[Keys[scaledData], circlePoints*Values[scaledData]]; (* Precompute the label-coordinate pairs *) labelCoordPairs = Thread[Keys[data] -> circlePoints] /. {_Missing -> Quantity[0, "Grams"]}; fillStyle = Opacity[0.5, Black]; opacityStyle = Opacity[0.01, Black]; pointStyle = Blue; rMax = 150; (* Create the plot *) Graphics[{ (* Add lines from the center outwards to indicate "axes" for the \ nutrients *) {Thin, Opacity[0.75], Gray, Dashed, Line[{{0, 0}, #}]} & /@ (rMax*circlePoints), (* For each position, draw a triangle and a line (taking missing values into account) *) MapIndexed[ With[{currentPosition = First[#2], nextPosition = Replace[First[#2] + 1, (n + 1) -> 1]}, { (* For each position, draw a triangle (origin -> point -> next point) *) { fillStyle, EdgeForm[], Polygon[ {{0, 0}, coordinates[[currentPosition, 2]], coordinates[[nextPosition, 2]]}, VertexColors -> { fillStyle, If[MemberQ[missingPositions, currentPosition], opacityStyle, fillStyle], If[MemberQ[missingPositions, nextPosition], opacityStyle, fillStyle] } ] // If[MemberQ[missingPositions, nextPosition | currentPosition], Tooltip[#, Missing["NotAvailable"]] &, Identity] }, (* Connect two points if neither of them are missing data *) If[ FreeQ[missingPositions, nextPosition | currentPosition], {Thickness[0.0033], Gray, Line[{coordinates[[currentPosition, 2]], coordinates[[nextPosition, 2]]}]} ] } ] &, coordinates[[;; -1, -1]]], (* For each non-missing position, put a small point *) { pointStyle, PointSize[0.0100], Tooltip[Point[coordinates[[#, 2]]], Grid[{{ToString[ Round[100*(data[[#]]/dailyValues[[#]]), 0.1]] <> " %", "", coordinates[[#, 1]]}, {data[[#]], "of", dailyValues[[#]]}}]] } & /@ Complement[Range[n], Flatten[missingPositions]], (* Radially nested polygons to indicate 50%, 100%, 150%, etc... of DV *) Table[ {Thin, Opacity[0.75], Sequence @@ If[r === 100, {Thick, Darker@Green}, {Gray, Dashed}], Tooltip[Line[r*Join[circlePoints, circlePoints[[;; 1]]]], ToString[r] <> "%"]}, {r, 50, rMax, 50}], (* Label the axes afterwards so that they aren't covered/ unreadable *) {Text[ Style[StringTrim@ StringReplace[ EntityValue[#1, "Description"], ("absolute" | "content") -> ""]], (rMax*1.175)*#2]} & @@@ labelCoordPairs }, opts ] ]

In[6]:=

compassPlot[breakfast]

Out[6]=

朝食に加え，昼食と夕食も指定する．

In[7]:=

lunch = EntityGroup[{ EntityInstance[Entity[ "Food", {EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "PeanutButter"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[2, "Tablespoons"]], EntityInstance[Entity[ "Food", {EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "Bread"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[2, "Slices"]], EntityInstance[Entity[ "Food", {EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "Jelly"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[1, "Servings"]] }];

In[8]:=

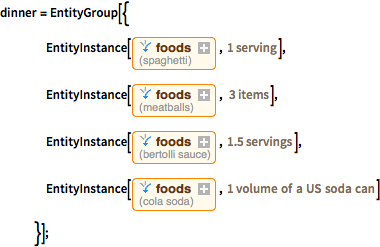

dinner = EntityGroup[{ EntityInstance[Entity[ "Food", {EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "Spaghetti"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[1, "Servings"]], EntityInstance[Entity[ "Food", {EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "Meatball"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[3, "Items"]], EntityInstance[Entity[ "Food", { EntityProperty["Food", "BrandName"] -> Entity[ "FoodBrandName", "Bertolli"], EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "Sauce"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[1.5, "Servings"]], EntityInstance[Entity[ "Food", { EntityProperty["Food", "Flavor"] -> Entity[ "FoodFlavor", "Cola"], EntityProperty["Food", "FoodType"] -> ContainsExactly[{ Entity["FoodType", "CarbonatedBeverage"]}], EntityProperty[ "Food", "AddedFoodTypes"] -> ContainsExactly[{}]}], Quantity[1, "USSodaCanVolumes"]] }];

各食事後の栄養素摂取状況を累積して可視化する．

In[9]:=

Grid[Partition[ MapThread[ compassPlot[#1, PlotLabel -> #2] &, {Rest[ FoldList[ Append, {}, {breakfast, lunch, dinner}]], {"After Breakfast", "After Lunch", "After Dinner"}}], UpTo[2]]]

Out[9]=
