Wolfram 언어™

유성우 데이터

LabelingFunction과 Callout을 결합하여 일정 조건을 충족하는 데이터만 라벨을 붙입니다.

In[1]:=

styles = {Joined -> False, Filling -> Bottom, FillingStyle -> Thick, PlotTheme -> "SingleAxis", PlotRange -> All, PlotStyle -> Yellow, LabelStyle -> White, Background -> Black, ImageSize -> 550};

In[2]:=

meteorData = MeteorShowerData[All, {"PeakDate", "PeakZHR", "Name"}]; meteorData = DeleteMissing[meteorData, 1, 1]; meteorData = meteorData[[All, ;; 2]] -> meteorData[[All, -1]];

In[3]:=

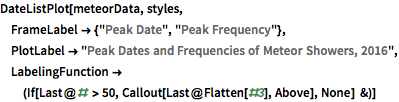

DateListPlot[meteorData, styles, FrameLabel -> {"Peak Date", "Peak Frequency"}, PlotLabel -> "Peak Dates and Frequencies of Meteor Showers, 2016", LabelingFunction -> (If[Last@# > 50, Callout[Last@Flatten[#3], Above], None] &)]

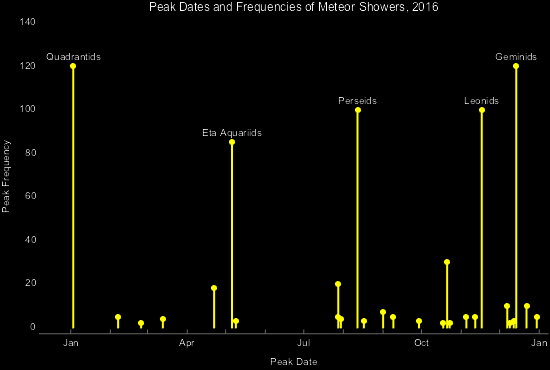

Out[3]=
