임의의 축 스케일 하기
스케일링 함수를 임의의 축에 적용합니다.
전체 Wolfram 언어 입력 표시하기

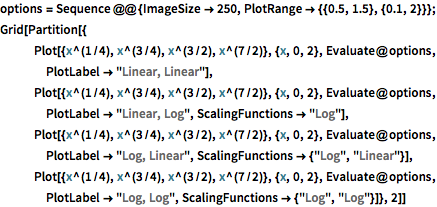

In[1]:=

options =
Sequence @@ {ImageSize -> 250,
PlotRange -> {{0.5, 1.5}, {0.1, 2}}};
Grid[Partition[{
Plot[{x^(1/4), x^(3/4), x^(3/2), x^(7/2)}, {x, 0, 2},
Evaluate@options, PlotLabel -> "Linear, Linear"],
Plot[{x^(1/4), x^(3/4), x^(3/2), x^(7/2)}, {x, 0, 2},
Evaluate@options, PlotLabel -> "Linear, Log",
ScalingFunctions -> "Log"],
Plot[{x^(1/4), x^(3/4), x^(3/2), x^(7/2)}, {x, 0, 2},
Evaluate@options, PlotLabel -> "Log, Linear",
ScalingFunctions -> {"Log", "Linear"}],
Plot[{x^(1/4), x^(3/4), x^(3/2), x^(7/2)}, {x, 0, 2},
Evaluate@options, PlotLabel -> "Log, Log",
ScalingFunctions -> {"Log", "Log"}]}, 2]]

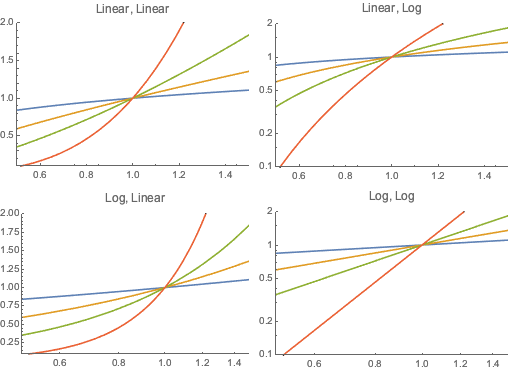

Out[1]=
