메가 밀도 플롯
극한의 부분이 가장 불투명한 함수의 3D 밀도 플롯을 생성합니다.
In[1]:=

density =
DensityPlot3D[
Sin[\[Pi] x] Sin[\[Pi] y] Sin[\[Pi] z], {x, -2, 2}, {y, -2,
1}, {z, -2, 1},
ColorFunction -> (Blend[{RGBColor[1, 0, 0], RGBColor[
1, 1, 0]}, #] &),
OpacityFunction -> Function[f, If[Abs[f] > .5, .22, .01]],
OpacityFunctionScaling -> False, PlotTheme -> "Minimal"]
Out[1]=

영역을 슬라이스하는 면 상에서 같은 함수를 플롯합니다.
In[2]:=

slices = SliceDensityPlot3D[
Sin[\[Pi] x] Sin[\[Pi] y] Sin[\[Pi] z], {z == y, x == y,
x == -y}, {x, -2, 2}, {y, -2, 1}, {z, -2, 1},
BoundaryStyle -> Directive[GrayLevel[1, .5], AbsoluteThickness[1]],
ColorFunction -> (Abs[#] &), PlotPoints -> 60,
PlotTheme -> "Minimal"]
Out[2]=

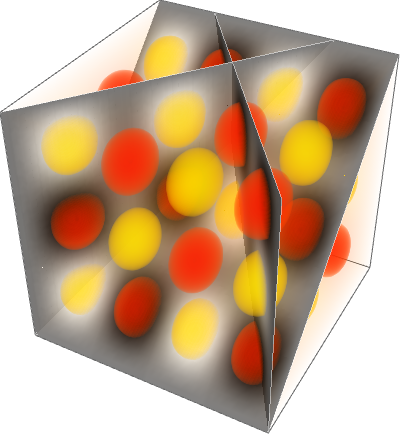

두개의 플롯을 함께 조합하여 메가 밀도 플롯을 만듭니다.
In[3]:=

Rasterize[Show[density, slices, ImageSize -> 400]]
Out[3]=
