Wolfram 语言™

用不透明度来观察函数

通过设定函数值的某个区间为最不透明来关注函数在一个立体内的不同结构.

In[1]:=

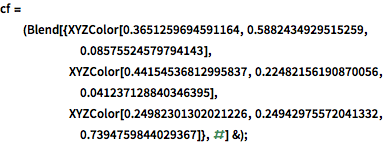

cf = (Blend[{XYZColor[0.3651259694591164, 0.5882434929515259, 0.08575524579794143], XYZColor[0.44154536812995837, 0.22482156190870056, 0.041237128840346395], XYZColor[0.24982301302021226, 0.24942975572041332, 0.7394759844029367]}, #] &);

In[2]:=

func = Sum[ Cos[5 Norm[{x, y, z} - {Sin[\[Theta]], Cos[\[Theta]], 0}]], {\[Theta], 0., 2 \[Pi] - (2 \[Pi])/3, (2 \[Pi])/3}];

In[3]:=

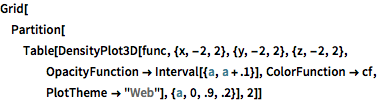

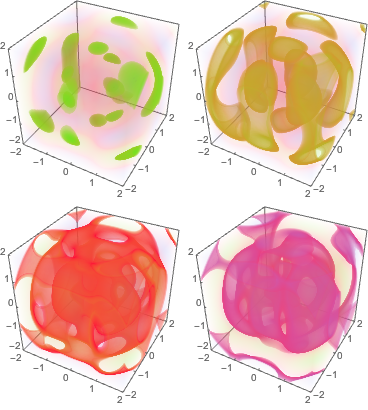

Grid[Partition[ Table[DensityPlot3D[func, {x, -2, 2}, {y, -2, 2}, {z, -2, 2}, OpacityFunction -> Interval[{a, a + .1}], ColorFunction -> cf, PlotTheme -> "Web"], {a, 0, .9, .2}], 2]]
