仿真数据的分析和渲染

可视化和分析国家大气研究中心（NCAR）对飓风伊莎贝尔的仿真结果.

用 Weather Research and Forecast（WRF）模型产生的飓风伊莎贝尔数据，由 NCAR 和美国国家科学基金会（NSF）提供.

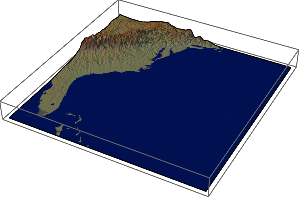

用合适的颜色函数导入并可视化高程数据.

显示完整的 Wolfram 语言输入隐藏输入

In[1]:=

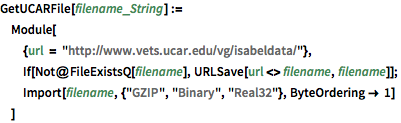

X GetUCARFile[filename_String] := Module[ {url = "http://www.vets.ucar.edu/vg/isabeldata/"}, If[Not@FileExistsQ[filename], URLSave[url <> filename, filename]]; Import[filename, {"GZIP", "Binary", "Real32"}, ByteOrdering -> 1] ]

In[2]:=

X UCARFileToImage3D[data_, opts___Rule] := Image3D[Reverse@Transpose[ Partition[Partition[Clip[data, 2^16 {-1, 1}, {0, 0}], 500], 500], {1, 3, 2}], "Real32", opts];

In[3]:=

X elevation = Transpose@Partition[GetUCARFile["HGTdata.bin.gz"], 500];

In[4]:=

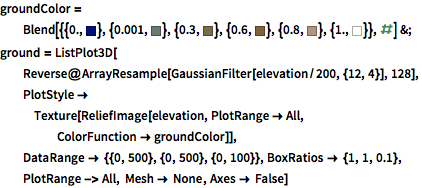

X groundColor = Blend[{{0., RGBColor[0., 0.0675975, 0.467384]}, {0.001, RGBColor[ 0.42313633333333334`, 0.4823743333333333, 0.434165]}, {0.3, RGBColor[0.4680942, 0.4216284, 0.29627780000000004`]}, {0.6, RGBColor[ 0.5066887333333333, 0.3798376666666667, 0.24217553333333333`]}, {0.8, RGBColor[ 0.6809748666666666, 0.5876996666666666, 0.49616886666666665`]}, {1., RGBColor[1., 1., 1.]}}, #] &; ground = ListPlot3D[ Reverse@ArrayResample[GaussianFilter[elevation/200, {12, 4}], 128], PlotStyle -> Texture[ReliefImage[elevation, PlotRange -> All, ColorFunction -> groundColor]], DataRange -> {{0, 500}, {0, 500}, {0, 100}}, BoxRatios -> {1, 1, 0.1}, PlotRange -> All, Mesh -> None, Axes -> False]

Out[4]=

导入时间步长为 的体积云层数据并将其叠加于高程图. 下载可能需要一段时间.

In[5]:=

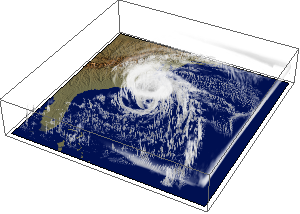

X clouds = ImageAdjust[UCARFileToImage3D[ GetUCARFile["CLOUDf30.bin.gz"], ColorFunction -> "WhiteBlackOpacity"]]; Show[clouds, ground]

Out[5]=

为陆地上空创建掩模.

In[6]:=

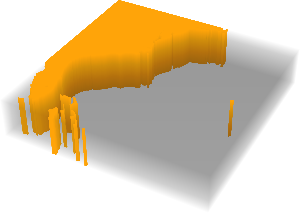

X mask = Image3D[ Table[UnitStep[ elevation - $MachineEpsilon], {ImageDimensions[clouds][[3]]}], "Bit"]

Out[6]=

测量覆盖陆地和海上的云层（水[kg] / 大气[kg]）.

In[7]:=

X landCloud = ImageMeasurements[clouds, {"Min", "Mean", "Max"}, Masking -> mask]

Out[7]=

In[8]:=

X seaCloud = ImageMeasurements[clouds, {"Min", "Mean", "Max"}, Masking -> ColorNegate[mask]]

Out[8]=

Out[9]//TraditionalForm=

在 x、y、z 轴方向导入风速确定并显示风力强度.

显示完整的 Wolfram 语言输入隐藏输入

In[9]:=

X windRescale = 0.0125;

In[10]:=

X xWind = UCARFileToImage3D[windRescale * GetUCARFile["Uf30.bin.gz"]]; yWind = UCARFileToImage3D[windRescale * GetUCARFile["Vf30.bin.gz"]]; zWind = UCARFileToImage3D[windRescale * GetUCARFile["Wf30.bin.gz"]];

In[11]:=

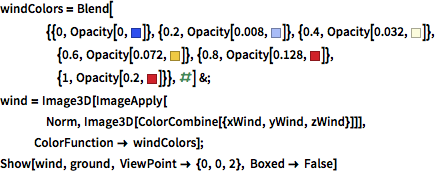

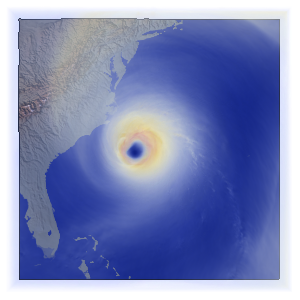

X windColors = Blend[ {{0, Opacity[0, RGBColor[0.178927, 0.305394, 0.933501]]}, {0.2, Opacity[0.008, RGBColor[ 0.6636740000000001, 0.73718644, 0.9671124799999999]]}, {0.4, Opacity[0.032, RGBColor[ 0.9868536, 0.98883164, 0.8675333999999999]]}, {0.6, Opacity[0.072, RGBColor[ 0.93733804, 0.7892732399999997, 0.2684389199999999]]}, {0.8, Opacity[0.128, RGBColor[0.817319, 0.134127, 0.164218]]}, {1, Opacity[0.2, RGBColor[0.817319, 0.134127, 0.164218]]}}, #] &; wind = Image3D[ImageApply[ Norm, Image3D[ColorCombine[{xWind, yWind, zWind}]]], ColorFunction -> windColors]; Show[wind, ground, ViewPoint -> {0, 0, 2}, Boxed -> False]

Out[11]=

在陆地和海域上空测量风力强度.

In[12]:=

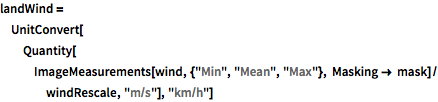

X landWind = UnitConvert[ Quantity[ImageMeasurements[wind, {"Min", "Mean", "Max"}, Masking -> mask]/windRescale, "m/s"], "km/h"]

Out[12]=

In[13]:=

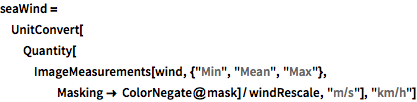

X seaWind = UnitConvert[ Quantity[ImageMeasurements[wind, {"Min", "Mean", "Max"}, Masking -> ColorNegate@mask]/windRescale, "m/s"], "km/h"]

Out[13]=

Out[14]//TraditionalForm=
