解剖结构的可视化和分析: Wolfram语言 11 的新功能

解剖结构的可视化和分析

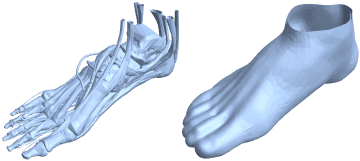

绘制人体足部骨骼结构和皮肤，并估计其表面积（以平方毫米计）.

In[1]:=

Row[EntityValue[{Entity["AnatomicalStructure", "RightFoot"],
   Entity["AnatomicalStructure", "SkinOfRightFoot"]}, "MeshRegion"]]

Out[1]=

In[2]:=

Area[EntityValue[Entity["AnatomicalStructure", "SkinOfRightFoot"],
  "MeshRegion"]]

Out[2]=

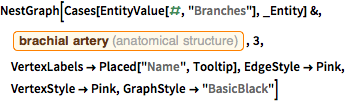

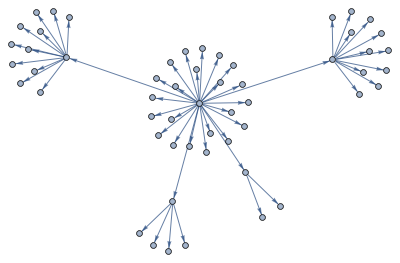

绘制肱动脉背侧支的连通性.

In[3]:=

NestGraph[Cases[EntityValue[#, "Branches"], _Entity] &,
 Entity["AnatomicalStructure", "BrachialArtery"], 3,
 VertexLabels -> Placed["Name", Tooltip], EdgeStyle -> Pink,
 VertexStyle -> Pink, GraphStyle -> "BasicBlack"]

Out[3]=

查找左前臂的部位.

In[4]:=

g = NestGraph[Cases[EntityValue[#, "ConstitutionalParts"], _Entity] &,
   Entity["AnatomicalStructure", "LeftForearm"], 2]

Out[4]=

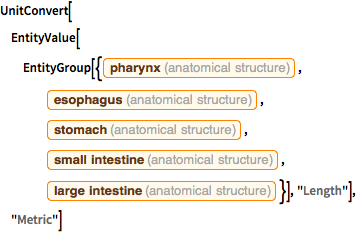

计算咽喉、食道、胃、小肠和大肠的总长度.

In[5]:=

UnitConvert[
 EntityValue[
  EntityGroup[{Entity["AnatomicalStructure", "Pharynx"],
    Entity["AnatomicalStructure", "Esophagus"],
    Entity["AnatomicalStructure", "Stomach"],
    Entity["AnatomicalStructure", "SmallIntestine"],
    Entity["AnatomicalStructure", "LargeIntestine"]}],
  "Length"], "Metric"]

Out[5]=

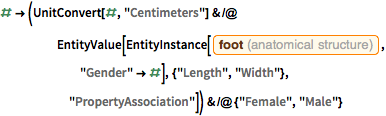

比较男性和女性足部的长度和宽度.

In[6]:=

# -> (UnitConvert[#, "Centimeters"] & /@
     EntityValue[
      EntityInstance[Entity["AnatomicalStructure", "Foot"],
       "Gender" -> #], {"Length", "Width"},
      "PropertyAssociation"]) & /@ {"Female", "Male"}

Out[6]=

Wolfram 语言™

解剖结构的可视化和分析

相关范例
