Hochstilisierte Modelle erstellen: Neu in Wolfram Language 11

Hochstilisierte Modelle erstellen

Visualisieren Sie ein Schnittmodell des menschlichen Kopfes.

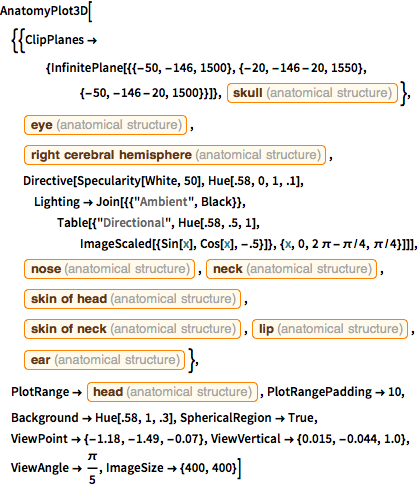

In[1]:=

AnatomyPlot3D[{{ClipPlanes -> {InfinitePlane[{{-50, -146,
        1500}, {-20, -146 - 20, 1550}, {-50, -146 - 20, 1500}}]},
   Entity["AnatomicalStructure", "Skull"]},
  Entity["AnatomicalStructure", "Eye"],
  Entity["AnatomicalStructure", "RightCerebralHemisphere"],
  Directive[Specularity[White, 50], Hue[.58, 0, 1, .1],
   Lighting ->
    Join[{{"Ambient", Black}},
     Table[{"Directional", Hue[.58, .5, 1],
       ImageScaled[{Sin[x], Cos[x], -.5}]}, {x, 0,
       2 \[Pi] - \[Pi]/4, \[Pi]/4}]]],
  Entity["AnatomicalStructure", "Nose"],
  Entity["AnatomicalStructure", "Neck"],
  Entity["AnatomicalStructure", "SkinOfHead"],
  Entity["AnatomicalStructure", "SkinOfNeck"],
  Entity["AnatomicalStructure", "Lip"],
  Entity["AnatomicalStructure", "Ear"]},
 PlotRange -> Entity["AnatomicalStructure", "Head"],
 PlotRangePadding -> 10, Background -> Hue[.58, 1, .3],
 SphericalRegion -> True, ViewPoint -> {-1.18, -1.49, -0.07},
 ViewVertical -> {0.015, -0.044, 1.0}, ViewAngle -> \[Pi]/5,
 ImageSize -> {400, 400}]

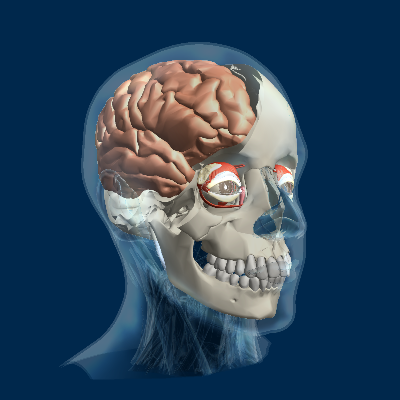

Out[1]=
