可視化:ラベル,スケール,除外

コールアウトのスタイル

名前付きの外観をコールアウトに使う.

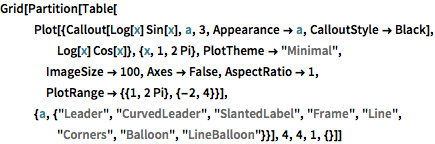

In[1]:=
Click for copyable input
Grid[Partition[Table[ Plot[{Callout[Log[x] Sin[x], a, 3, Appearance -> a, CalloutStyle -> Black], Log[x] Cos[x]}, {x, 1, 2 Pi}, PlotTheme -> "Minimal", ImageSize -> 100, Axes -> False, AspectRatio -> 1, PlotRange -> {{1, 2 Pi}, {-2, 4}}], {a, {"Leader", "CurvedLeader", "SlantedLabel", "Frame", "Line", "Corners", "Balloon", "LineBalloon"}}], 4, 4, 1, {}]]

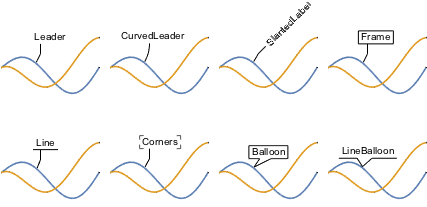

Out[1]=

コールアウトを組込みの形を使ったアンカー点に接続する.

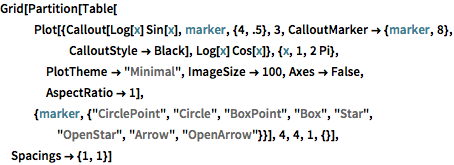

In[2]:=
Click for copyable input
Grid[Partition[Table[ Plot[{Callout[Log[x] Sin[x], marker, {4, .5}, 3, CalloutMarker -> {marker, 8}, CalloutStyle -> Black], Log[x] Cos[x]}, {x, 1, 2 Pi}, PlotTheme -> "Minimal", ImageSize -> 100, Axes -> False, AspectRatio -> 1], {marker, {"CirclePoint", "Circle", "BoxPoint", "Box", "Star", "OpenStar", "Arrow", "OpenArrow"}}], 4, 4, 1, {}], Spacings -> {1, 1}]

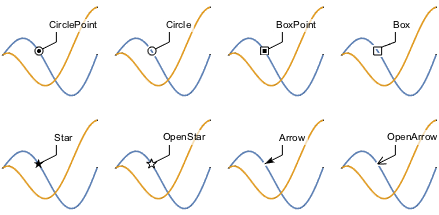

Out[2]=
