绘制水的普朗克热力学势图

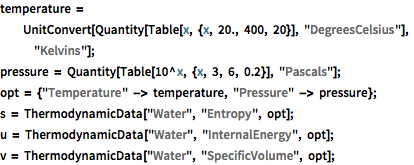

在不同温度和气压下获得水的熵、内部能量和比容.

In[1]:=
Click for copyable input
X

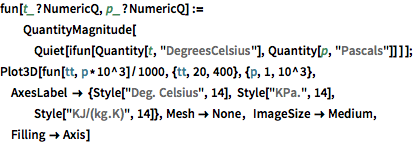

使用 关系生成离散值并对普朗克电势或吉布斯自由熵进行三维插值.

In[2]:=
Click for copyable input
X

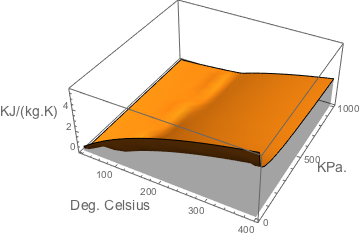

绘制作为温度和气压函数的的插补函数.

显示完整的 Wolfram 语言输入
Out[3]=
