Wolfram Language™

Use DTW para comparar grabaciones

Importe, recorte y preprocese cuatro grabaciones de la primera oración de Alice in Wonderland.

In[1]:=

urls = {"http://ia800503.us.archive.org/3/items/alices_adventures/\ aliceinwonderland_01_carroll.mp3", "http://ia800306.us.archive.org/25/items/alice_wonderland_0711_\ librivox/alice_01_carroll.mp3", "http://ia800201.us.archive.org/32/items/alices_adventures_1003/\ alices_adventures_01_carroll.mp3", "https://ia800904.us.archive.org/15/items/alicesadventure_abridged_\ pc_librivox/alicesadventuresinwonderlandabridged_01_carroll.mp3"}; times = {{27, 33.5}, {16.5, 25}, {22.3, 28.5}, {31, 38}};

In[2]:=

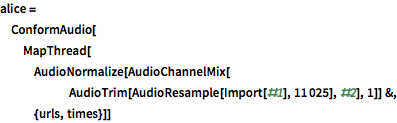

alice = ConformAudio[ MapThread[ AudioNormalize[ AudioChannelMix[AudioTrim[AudioResample[Import[#1], 11025], #2], 1]] &, {urls, times}]]

Out[2]=

Muestre los gráficos de las señales.

In[3]:=

AudioPlot[alice, ImageSize -> Medium]

Out[3]=

Calcule y grafique los atributos de MFCC de las muestras.

In[4]:=

mfcc = AudioLocalMeasurements[#, "MFCC", PartitionGranularity -> {.05, .01}]["Values"] & /@ alice;

In[5]:=

Column[MatrixPlot[#, PlotTheme -> "Minimal", ImageSize -> Medium] & /@ Transpose /@ mfcc]

Out[5]=

Calcule la distancia de deformación de tiempo dinámico entre las grabaciones usando WarpingDistance.

In[6]:=

DistanceMatrix[mfcc, DistanceFunction -> WarpingDistance] // MatrixPlot

Out[6]=

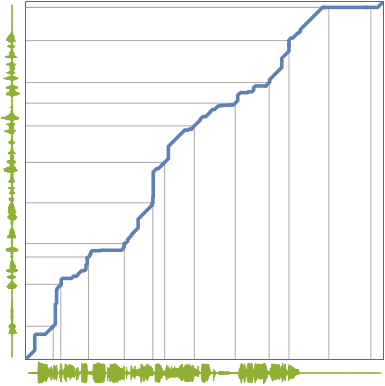

Calcule la correspondencia de deformación de tiempo dinámico usando WarpingCorrespondence.

In[7]:=

{n, m} = WarpingCorrespondence[mfcc[[1]], mfcc[[2]]];

In[8]:=

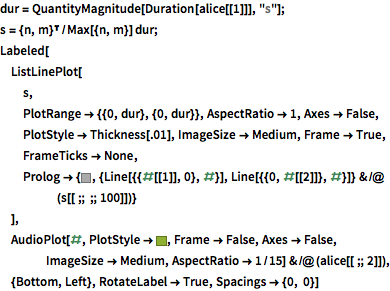

dur = QuantityMagnitude[Duration[alice[[1]]], "s"]; s = {n, m}\[Transpose]/Max[{n, m}] dur; Labeled[ ListLinePlot[ s, PlotRange -> {{0, dur}, {0, dur}}, AspectRatio -> 1, Axes -> False, PlotStyle -> Thickness[.01], ImageSize -> Medium, Frame -> True, FrameTicks -> None, Prolog -> {RGBColor[ 0.6666666666666666, 0.6666666666666666, 0.6666666666666666], {Line[{{#[[1]], 0}, #}], Line[{{0, #[[2]]}, #}]} & /@ (s[[;; ;; 100]])} ], AudioPlot[#, PlotStyle -> RGBColor[0.560181, 0.691569, 0.194885], Frame -> False, Axes -> False, ImageSize -> Medium, AspectRatio -> 1/15] & /@ (alice[[;; 2]]), {Bottom, Left}, RotateLabel -> True, Spacings -> {0, 0}]

Out[8]=
