运行 2015 芝加哥马拉松的数据: Wolfram 语言 11 的新功能

运行 2015 芝加哥马拉松的数据

2015年 10 月 11日芝加哥马拉松吸引了 45,000 名选手来到芝加哥. 37,000 以上的选手完成了比赛，并且每位选手的表现都被准确记录下来. 使用含有该数据的实体库研究并可视化选手的特征和其表现.

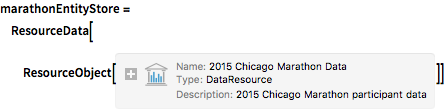

从 ResourceObject 加载该马拉松的一个实体库.

In[1]:=

marathonEntityStore = ResourceData[
ResourceObject[
Association[
   "Name" -> "2015 Chicago Marathon Data",
    "UUID" -> "7dc77972-cfc3-48dc-8d08-0292c6d2a929",
    "ResourceType" -> "DataResource", "Version" -> "1.0.0",
    "Description" -> "2015 Chicago Marathon participant data",
    "ContentSize" -> Quantity[1990.2215919999999`, "Megabytes"],
    "ContentElements" -> {"Content"}]]]

Out[1]=

注册该部分数据库.

In[2]:=

PrependTo[$EntityStores, marathonEntityStore];

提取选手的总人数，并采用隐式定义的实体类，提取男性和女性的参加人数.

In[3]:=

EntityValue["ChicagoMarathon2015", "EntityCount"]

Out[3]=

In[4]:=

Table[EntityValue[
  EntityClass["ChicagoMarathon2015", "Gender" -> gender],
  "EntityCount"], {gender, {Entity["Gender", "Male"],
   Entity["Gender", "Female"]}}]

Out[4]=

随机选定五名选手.

In[5]:=

RandomEntity["ChicagoMarathon2015", 5]

Out[5]=

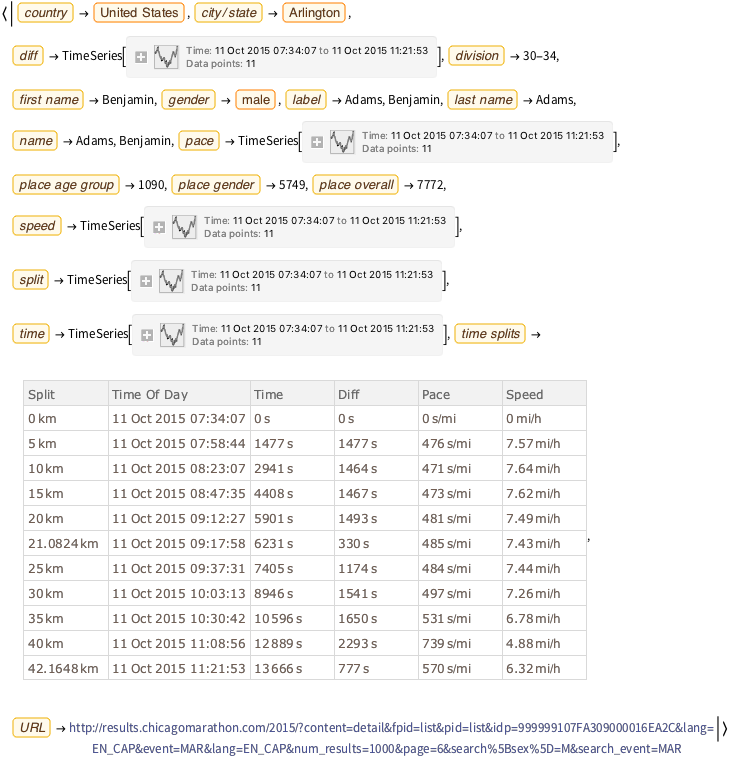

查看特定选手所存储的属性.

In[6]:=

Entity["ChicagoMarathon2015", "Runner145"]["PropertyAssociation"]

Out[6]=

提取选手的国籍记录，并创建包含常见国籍的表格.

In[7]:=

nationalityTallies =
  Reverse[SortBy[
    Tally[EntityValue["ChicagoMarathon2015",
      EntityProperty["ChicagoMarathon2015", "Country"]]], Last]];

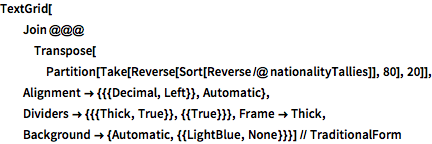

显示完整的 Wolfram 语言输入

In[8]:=

TextGrid[Join @@@
   Transpose[
    Partition[Take[Reverse[Sort[Reverse /@ nationalityTallies]], 80],
     20]], Alignment -> {{{Decimal, Left}}, Automatic},
  Dividers -> {{{Thick, True}}, {{True}}}, Frame -> Thick,
  Background -> {Automatic, {{LightBlue, None}}}] // TraditionalForm

Out[8]//TraditionalForm=

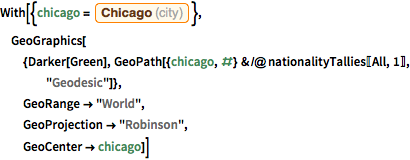

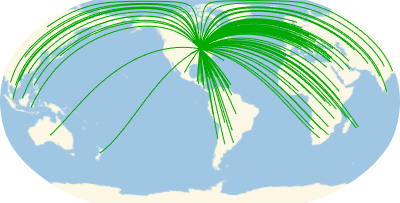

可视化从所有国家到芝加哥的测地路径.

In[9]:=

With[{chicago =
   Entity["City", {"Chicago", "Illinois", "UnitedStates"}]},
 GeoGraphics[{Darker[Green],
   GeoPath[{chicago, #} & /@ nationalityTallies[[All, 1]],
    "Geodesic"]},
  GeoRange -> "World",
  GeoProjection -> "Robinson",
  GeoCenter -> chicago]]

Out[9]=

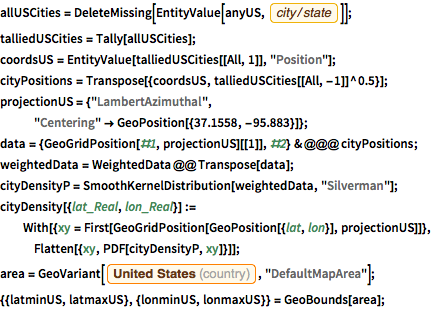

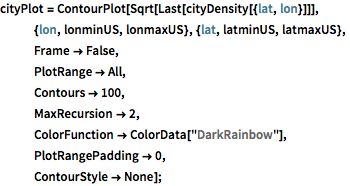

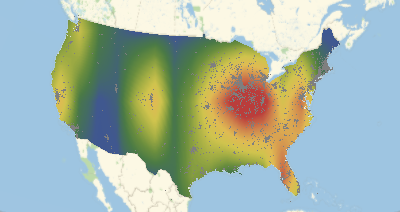

构建显示美国参赛者住址的美国地图热图.

显示完整的 Wolfram 语言输入

In[10]:=

anyUS = EntityClass["ChicagoMarathon2015",
    "Country" -> Entity["Country", "UnitedStates"]] // EntityList;

In[11]:=

allUSCities =
  DeleteMissing[
   EntityValue[anyUS,
    EntityProperty["ChicagoMarathon2015", "CityState"]]];
talliedUSCities = Tally[allUSCities];
coordsUS = EntityValue[talliedUSCities[[All, 1]], "Position"];
cityPositions =
  Transpose[{coordsUS, talliedUSCities[[All, -1]]^0.5}];
projectionUS = {"LambertAzimuthal",
   "Centering" -> GeoPosition[{37.1558, -95.883}]};
data = {GeoGridPosition[#1, projectionUS][[1]], #2} & @@@
   cityPositions;
weightedData = WeightedData @@ Transpose[data];
cityDensityP = SmoothKernelDistribution[weightedData, "Silverman"];
cityDensity[{lat_Real, lon_Real}] :=
  With[{xy =
     First[GeoGridPosition[GeoPosition[{lat, lon}], projectionUS]]},
   Flatten[{xy, PDF[cityDensityP, xy]}]];
area = GeoVariant[Entity["Country", "UnitedStates"], "DefaultMapArea"];
{{latminUS, latmaxUS}, {lonminUS, lonmaxUS}} = GeoBounds[area];

In[11]:=

cityPlot =
  ContourPlot[
   Sqrt[Last[cityDensity[{lat, lon}]]], {lon, lonminUS,
    lonmaxUS}, {lat, latminUS, latmaxUS},
   Frame -> False,
   PlotRange -> All,
   Contours -> 100,
   MaxRecursion -> 2,
   ColorFunction -> ColorData["DarkRainbow"],
   PlotRangePadding -> 0,
   ContourStyle -> None];

In[11]:=

GeoGraphics[{GeoStyling[{"GeoImage", cityPlot}], Polygon[area],
  Gray, Opacity[1], PointSize[0.001], Point[coordsUS]},
 GeoRange -> area]

Out[12]=

从分割均值找出每个变化的选手数目.

In[13]:=

allkm = Table[
   Normal[allTimeSplits[[i]][2 ;;, "Time"]], {i,
    Length[allTimeSplits]}];

In[13]:=

allsplitbins = DeleteMissing[Transpose[allkm], 2];

In[13]:=

meanall = Table[N[Mean[allsplitbins[[i]]]], {i, Length[allsplitbins]}]

Out[13]=

In[13]:=

marathondistances = (allTimeSplits[[1]])[All, "Split"] // Normal

Out[13]=

In[13]:=

differencesall = Table[{marathondistances[[i + 1]],
    allsplitbins[[i]] - meanall[[i]]},
   {i, Length[allsplitbins]}];

In[13]:=

allHistograms =
  Histogram[#2, {60}, PlotLabel -> NumberForm[#1, {3, 1}]] & @@@
   differencesall;

生成每个分割的直方图.

In[14]:=

Grid[Partition[allHistograms, UpTo[3]]]

Out[15]=

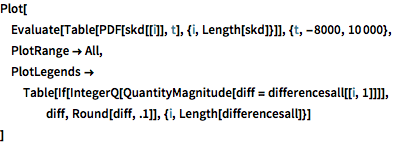

绘制选手分割和均值间的不同的平滑内核分布图.

显示完整的 Wolfram 语言输入

In[16]:=

skd = Table[
   SmoothKernelDistribution[
    QuantityMagnitude[differencesall[[i, 2]]]], {i,
    Length[differencesall]}];

In[17]:=

Plot[
 Evaluate[Table[PDF[skd[[i]], t], {i, Length[skd]}]], {t, -8000,
  10000}, PlotRange -> All,
 PlotLegends ->
  Table[If[IntegerQ[QuantityMagnitude[diff = differencesall[[i, 1]]]],
     diff, Round[diff, .1]], {i, Length[differencesall]}]
 ]

Out[17]=
